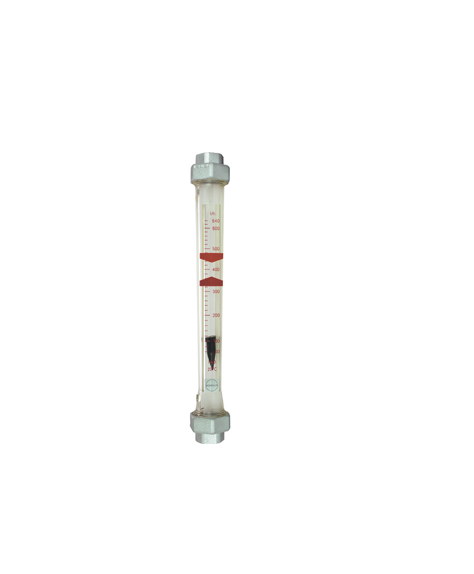

Senseca GKL-025GTW0640PM フローインジケータ (60 – 640 l/h, with magnet, PA crystal clear tube, Malleable cast iron connection)
生産者: Senseca Model: GKL-025GTW0640PM - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Medium water / float PP
Metering tube: PA crystal clear
Switch: optional reed switch
Nominal width: DN 25
Process connection: malleable cast iron, female Rp 1''
Metering range: 60 – 640 l/h
Qmax. : up to 6400 l/min
Tolerance: ±3 % of the full scale value
Max. process pressure: 15 bar up to 25°C
Medium temperature: -20..+60 °C optional 5..100 °C metering tube PSU
Ambient temperature: -20..+60 °C
Media: water
Electrical data: see "Additional devices for GK / GKL"
Materials medium-contact: PA 6-3-T, Malleable cast iron, FPM float made from PP or s.s.1.4571 ,optionally, measurement tube made from PSU
For details please see Datasheet
