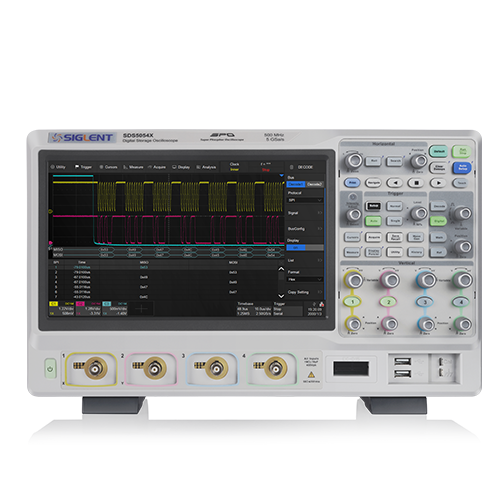

SIGLENT SDS5104X デジタルストレージオシロスコープ (1GHz, 4+EXT, 5GSa/s)

Analog channels: 4+EXT

Bandwidth: 1GHz

Sample rate (Max.): 5GSa/s (interleaving mode*), 2.5GSa/s (non-interleaving mode**)

Memory depth (Max.): 250Mpts/ch (interleaving mode), 125Mpts/ch (non-interleaving mode)

Waveform capture rate (Max.): 110,000wfm/s (Normal mode); 500,000 wfm/s (Sequence mode)

Trigger type: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay

Serial trigger and decode:

- Standard: I2C, SPI, UART, CAN, LIN

- Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only)

Measurement: 50+ parameters, statistics, histogram, trend supported

Digital channel (optional): 16-channel; maximum sample rate up to 1.25 GSa/s; record length up to 62.5 Mpts

Waveform generator (optional): Single channel external USB waveform generator, frequency up to 25 MHz, 125 MSa/s sample rate, 16 kpts waveform memory

I/O: USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 10 MHz In, 10 MHz Out, VGA Output

Probe (standard): SP3050A, 500MHz, 1 probe supplied for each channel

Display: 10.1” TFT-LCD with capacitive touch screen (1024*600)
