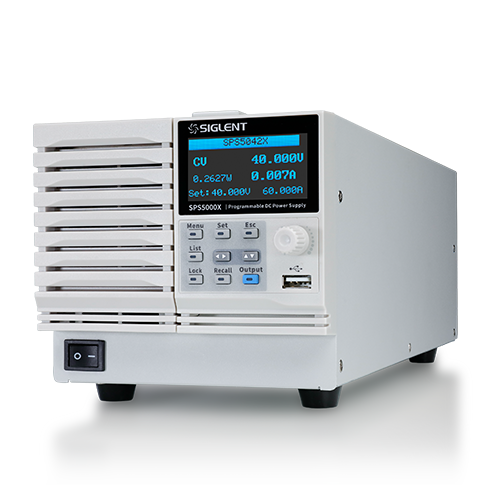

SIGLENT SPS5051X プログラム可能なスイッチングDC電源 (1 channel; 50V/10A/180W)
生産者: SIGLENT Model: SPS5051X 品物を保証します: 12 Month - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Output channel: 1
Display: 2.4-inch OLED Screen
Rated output voltage: 50V
Rated output current: 10A
Total rated output power: 180W
Power ratio: 2.77
C.V Mode
Line regulation: 3mV
Load regulation: 10mV
Ripple and Noise: Noise bandwidth: 20MHz; Ripple bandwidth: 1MHz
- Ripple (pk to pk): 45mV
- RMS Ripple: 4mV
Voltage programming
- Accuracy: 0.1%±10mV
- Resolution: 1mV
Voltage readback
- Accuracy: 0.1%±20mV
- Resolution: 1mV
Temperature coefficient: 100ppm/°C from rated output voltage following 30-minute warm-up
Rise time
- Rated load: 50ms
- No load: 50ms
Fall time
- Rated load: 50ms
- No load: 500ms
C.C Mode
Line regulation: 8mA
Load regulation 10mA
Ripple and Noise (r.m.s): 10mA
Current setting accuracy: 0.1%±10mA
Current programming resolution: 1mA
Current readback
- Accuracy: 0.1%±20mA
- Resolution: 1mA
Temperature coefficient: 200ppm/°C from rated output current following 30-minute warm-up
Standard accessories:
USB Cable
Power cord
SPS5000X QuickStart
