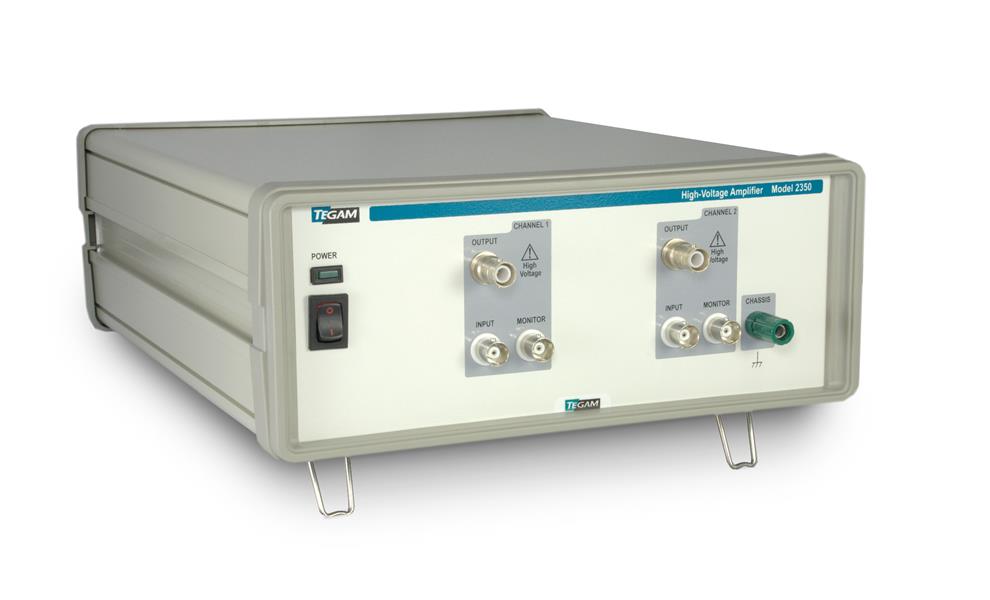

TEGAM 2350 デュアルチャンネル高電圧アンプ (0 ~ ±200 V; 40 mA; 2 channels)

Electrical Specifications

Number of Channels: 2

Input Impedance: 50 Ω Direct Coupled

Output Voltage Range: 0 to ± 200 V Direct Coupled (400 V p-p)

Maximum Output Current: 40 mA per channel

Output Impedance: < 0.2 Ω

Voltage Gain: +50 Fixed (Special Order +10-100)

Sine Wave Distortion (THD): See Figure 4 (datasheet)

Small Signal Bandwidth: DC to 2 MHz -Typical (-3 dB) - Refer to Figure 1 (datasheet)

Full Power:

200 kHz / 400 Vpp Sine - Typical (-0.1 dB) (CL<200 pF)

Slew Rate: >250 V/μSec

Square Wave Response: < 0.8 μSec for 200 Volt Step

Aberrations:

< 2 %

50 Ω Voltage Monitor Outputs 50 Ω Input Z (200:1 Ratio)

(One for each Channel) > 1 MΩ Input Z (100:1 Ratio)

Safety: Conforms with IEC 61010-1, CE Marked

Environmental

Operating Temperature: 0 ºC to +45 ºC (+32 ºF to +113 ºF) Ambient

Storage Temperature: -20 ºC to +50 ºC (-4 ºF to +122 ºF)

Humidity Range: < 80 % RH Non-Condensing

General

Input Supply Voltage: 110/220 50/60 Hz – Rear Panel Selectable

Power Rating: 100 VA; 80 W

Dimensions: (H x W x L) 4.51 in x 10.14 in x 11.81 in (11.5 x 25.8 x 30.0 cm)

Weight (approximate): 4.5 kg (10 lb)

Recommended Calibration Cycle: 1 Year

Warranty: 1 Year Parts and Labor

Included Accessories:

User’s Manual - P/N 810044-CD

BNC to 02 x High-Voltage BNC Cables (3 ft) - P/N 740949
