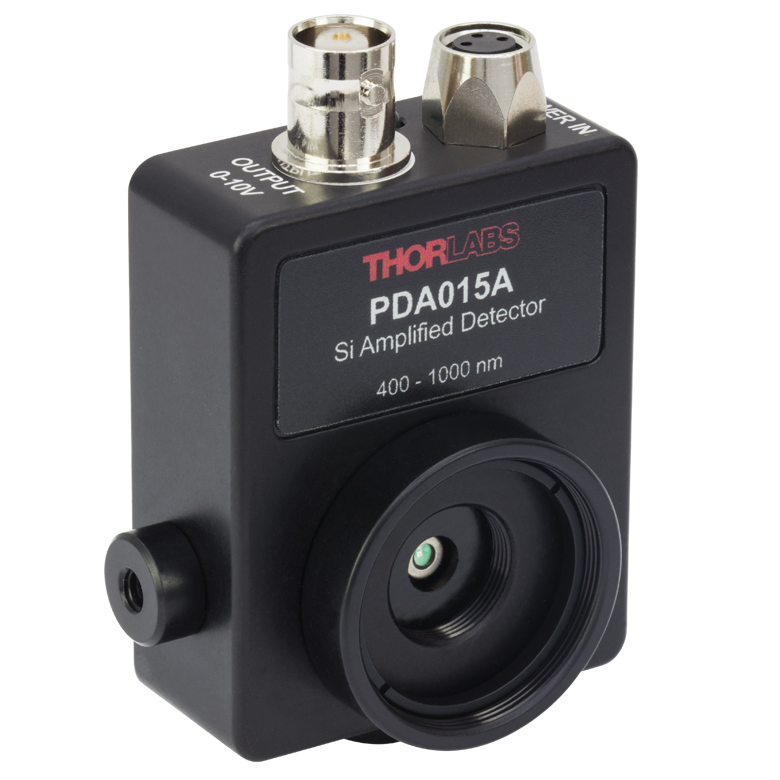

THORLABS PDA015A Si増幅フォトディテクタ (400-1000 nm, Fixed Gain, 8-32 Taps)
生産者: THORLABS Model: PDA015A - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Wavelength Range: 400 - 1000 nm
Bandwidth Range: DC - 380 MHz
Rise Time: 1.0 ns
Gain Hi-Z Load: 50 kV/A
Gain 50 Ω Load: 25 kV/A
NEP: 36 pW/Hz^1/2
Active Area(c): 0.018 mm^2 (Ø150 µm)
Operating Temperature Range: 10 to 40°C
Power Supply Included: Yes
(c) View photos of the detector elements in manual
(d) When long-term UV light is applied, the product specifications may degrade. For example, the product’s UV response may decrease and the dark current may increase. The degree to which the specifications may degrade is based upon factors such as the irradiation level, intensity, and usage time.
(e) The detector active area surface is flush with the front the housing.
(f) Femtosecond Pulsed Gain
(g) CW Gain
