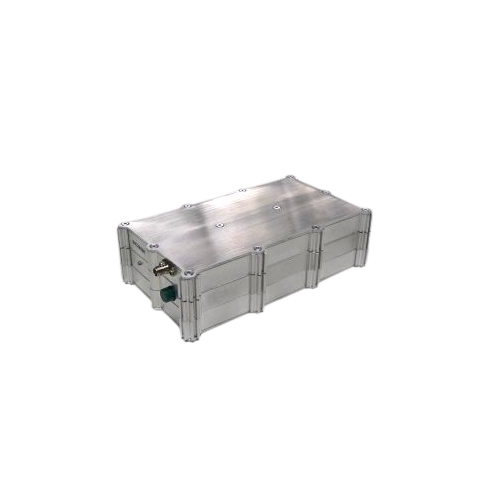

WinRADiO WR-G526e レシーバー (20 - 3000 MHz; Integrated Single-channel Module)
生産者: WinRADiO Model: WR-G526e P/N: SC - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Input frequency range: 20 - 3000 MHz
Tuning resolution: 10 Hz
Output frequency: 21.4 MHz
Output bandwidth: 22 MHz
Gain: 30 dB typ.
Noise figure: 12 dB typ. @ 100 MHz
Total LO phase noise: -86 dBc/Hz @ 10 kHz
Internal spurii: -105 dBm typ.*
Tuning speed: 16 ms typ.
Settling speed: 0.8 ms / MHz typ.
Frequency stability: 0.01 ppm
IF rejection: >60 dB
Maximum input level: +10 dBm
Attenuation control: 0-30 dB switchable front-end attentuator in 2 dB steps,
20 dB switchable attenuator in IF path
IP3: 0 dBm typ.
Input impedance: 50 ohm (SMA connector)
Output impedance: 50 ohm (SMA connector)
Operating voltage: 12 V DC ±5%
Power consumption: 8 W typ.
Dimensions: 150 x 90 x 45 mm (5.9" x 3.5" x 1.8")
Weight : 650 g (23 oz)
Operating temperature: -10º to +60º C
Humidity: 20-90% non-condensing
