JEIOTECH LCH-11G Heating & Cooling Chambers (150L, 0~100℃) | EMIN.ASIA

TEMPERATURE & HUMIDITY TEST CHAMBER
JEIOTECH LCH-11G Heating & Cooling Chambers (150L, 0~100℃)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

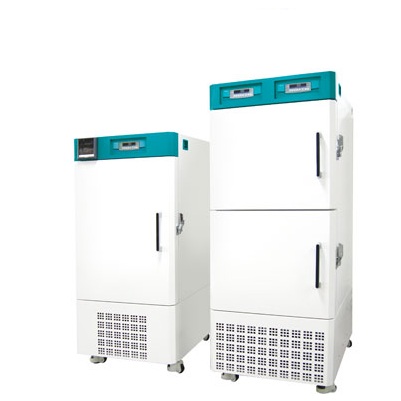

Product image

JEIOTECH LCH-11G Heating & Cooling Chambers (150L, 0~100℃)

ManufacturerJEIOtech

ModelLCH-11G

P/NAAHK6122K

OriginKorea

Warranty12 months

USD 5,619.60

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Chamber volume (L): 150
Temperature Range (℃): 0 to 100
Time Heating (min): 80 (from 20℃to100℃)
Time Cooling (min): 60 (from100℃to 40℃)
Max. load per shelf (kg): 15
Max. load per shelf (kg): 50
Interior (mm): 600x500x500
External (mm): 740x1032x1280
Net weight (kg): 120 kg
Interface port: Basically RS-232C
Electrical requirements (AC230V, 60Hz): 7.1A

Performance

Microprocessor PID control.
Temperature calibration / Automatic tuning.
Adjustable three-step fan speed with defrosting time and period control.
Forced air convection using an optimal cross flow fan for chamber temperature uniformity.
Energy efficiency is achieved thanks to optimization of the insulation system. The surface of the unit doesn’t allow high temperatures of over 60℃.

Convenience

Two independently controlled chambers merged into a single unit for space saving.
Intuitive control panel with bright LED display (0.1℃resolution) and touch-sensitive keypad.
Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
Convenient preset function for 3 most commonly used temperature settings.
Up to 9 temperature steps and maximum 200 cycles of repetition programmable for each profile.
Built-in cable port to use other instruments inside the chamber. (diameter: 80mm)
RS-232 interface for external control and data collection.
