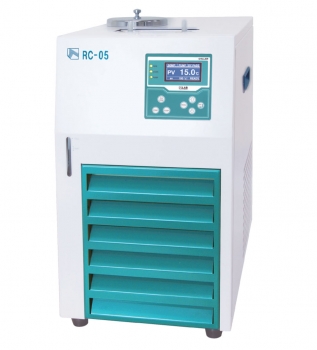

JEIOtech RC-05 Chiller (Recirculating Coolers) (Compact)

at 0℃ (W): 350

at 10℃ (W): 450

at 20℃ (W): 580

at -10℃ (W): 270

at -20℃ (W): 110

230V, 50/60 Hz, A: 4

Width (mm / inch): 300 / 11.8

Net weight (kg / lbs): 45 / 99.2

Max. pressure (bar / psi): 0.7 / 10.15

Refrigerator capacity (HP): 1 / 3

For tubing dia. (mm / inch): 9.5 / 3/8

Filling inlet (Ø, mm / inch): 37 / 1.46

Height (with lid), (mm / inch): 530 / 20.9

Max. filling volume (L / cu ft): 5 / 0.18

Max. flow rate (L / min, gal / min): 26 / 6.87

Depth (with drain valve), (mm / inch): 550 / 21.7

Working temperature range (℃ / ℉): -10 to 30 / 14 to 86

Temperature stability at 15℃ (bath fluid : water) (±℃ / ℉): 1 / 1.8
