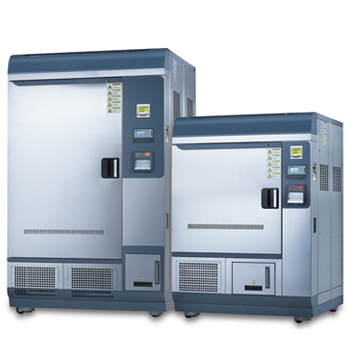

JEIOtech TH-ICH-300 Pharmaceutical Stability Test Chamber

part_type: Electrical requirements

Cable port: Basically one hole provided / Ø 50mm (2”) , Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2”)

Controller: PID control (LCD Type)

Interface port: Basically RS-232C, [RS-485 : optional]

Time - Cooling: 35min (20℃ → -5℃)

Time - Heating: 25min (20℃ → 85℃)

Humidity - Range (%RH): 20 to 85 ※ See page 231 for more detailed humidity range check.

Refrigeration - System: Air - cooled

Chamber volume (L / cu ft): 300 / 10.6

Water tank - Water quality: pH6.2 ~ 7.2, Electrical conductivity 20㎲ / cm to below

Refrigeration - Refrigerant: R- 404A

Max. load per shelf (kg / lbs): 25 / 55.1

Permitted total load (kg / lbs): 75 / 165.3

Water tank - Capacity (L / cu ft): 15 / 0.53

No. of wire shelves (standard / max.): 2 / 8

Distance of between shelves (mm / inch): 60 / 2.4

Dimension (W×D×H) - Exterior (mm / inch): 1130×985×1520 / 44.5×38.8×59.8

Dimension (W×D×H) - Interior (mm / inch): 750×650×650 / 29.5×25.6×25.6

Dimension (W×D×H) - Net weight (kg / lbs): 280±10 / 617±22

Electrical requirements - AC230V, 1ph, 60Hz: 14.7 A

Light source (ICH Q1B option 2) - Cool white 3): 6,000 lux

Humidity - Variation 2) (±%RH) at 60%RH / 40℃: 5

Humidity - Fluctuation 2) (±%RH) at 60%RH / 40℃: 3

Light source (ICH Q1B option 2) - Light uniformity: VIS. : ±10%UVA : ±15%

Light source (ICH Q1B option 2) - Ultraviolet-A 3): 4.5 W/㎡

Temperature 1) - Range - with humidity (℃ / ℉): +15 to 85 / 59 to 185 with Light

Temperature 1) - Range - without humidity (℃ / ℉): -5 to 85 / 23 to 185 without Light 0 to 85 / 32 to 185 with Light

Temperature 1) - Variation 1) (±℃ / ℉) at 40℃ / 60%RH: 0.5 / 0.9

Temperature 1) - Fluctuation 1) (±℃ / ℉) at 40℃ / 60%RH: 0.3 / 0.55

Typical time required to reach ICH recommendation of 200 W-hr/m2: ≒ 50Hr

Typical time required to reach ICH Recommendation of 1.2 million lux-hr: ≒ 200Hr

Cable port: Basically one hole provided / Ø 50mm (2”) , Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2”)

Controller: PID control (LCD Type)

Interface port: Basically RS-232C, [RS-485 : optional]

Time - Cooling: 35min (20℃ → -5℃)

Time - Heating: 25min (20℃ → 85℃)

Humidity - Range (%RH): 20 to 85 ※ See page 231 for more detailed humidity range check.

Refrigeration - System: Air - cooled

Chamber volume (L / cu ft): 300 / 10.6

Water tank - Water quality: pH6.2 ~ 7.2, Electrical conductivity 20㎲ / cm to below

Refrigeration - Refrigerant: R- 404A

Max. load per shelf (kg / lbs): 25 / 55.1

Permitted total load (kg / lbs): 75 / 165.3

Water tank - Capacity (L / cu ft): 15 / 0.53

No. of wire shelves (standard / max.): 2 / 8

Distance of between shelves (mm / inch): 60 / 2.4

Dimension (W×D×H) - Exterior (mm / inch): 1130×985×1520 / 44.5×38.8×59.8

Dimension (W×D×H) - Interior (mm / inch): 750×650×650 / 29.5×25.6×25.6

Dimension (W×D×H) - Net weight (kg / lbs): 280±10 / 617±22

Electrical requirements - AC230V, 1ph, 50Hz: 14.7 A

Light source (ICH Q1B option 2) - Cool white 3): 6,000 lux

Humidity - Variation 2) (±%RH) at 60%RH / 40℃: 5

Humidity - Fluctuation 2) (±%RH) at 60%RH / 40℃: 3

Light source (ICH Q1B option 2) - Light uniformity: VIS. : ±10%UVA : ±15%

Light source (ICH Q1B option 2) - Ultraviolet-A 3): 4.5 W/㎡

Temperature 1) - Range - with humidity (℃ / ℉): +15 to 85 / 59 to 185 with Light

Temperature 1) - Range - without humidity (℃ / ℉): -5 to 85 / 23 to 185 without Light 0 to 85 / 32 to 185 with Light

Temperature 1) - Variation 1) (±℃ / ℉) at 40℃ / 60%RH: 0.5 / 0.9

Temperature 1) - Fluctuation 1) (±℃ / ℉) at 40℃ / 60%RH: 0.3 / 0.55

Typical time required to reach ICH recommendation of 200 W-hr/m2: ≒ 50Hr

Typical time required to reach ICH Recommendation of 1.2 million lux-hr: ≒ 200Hr
