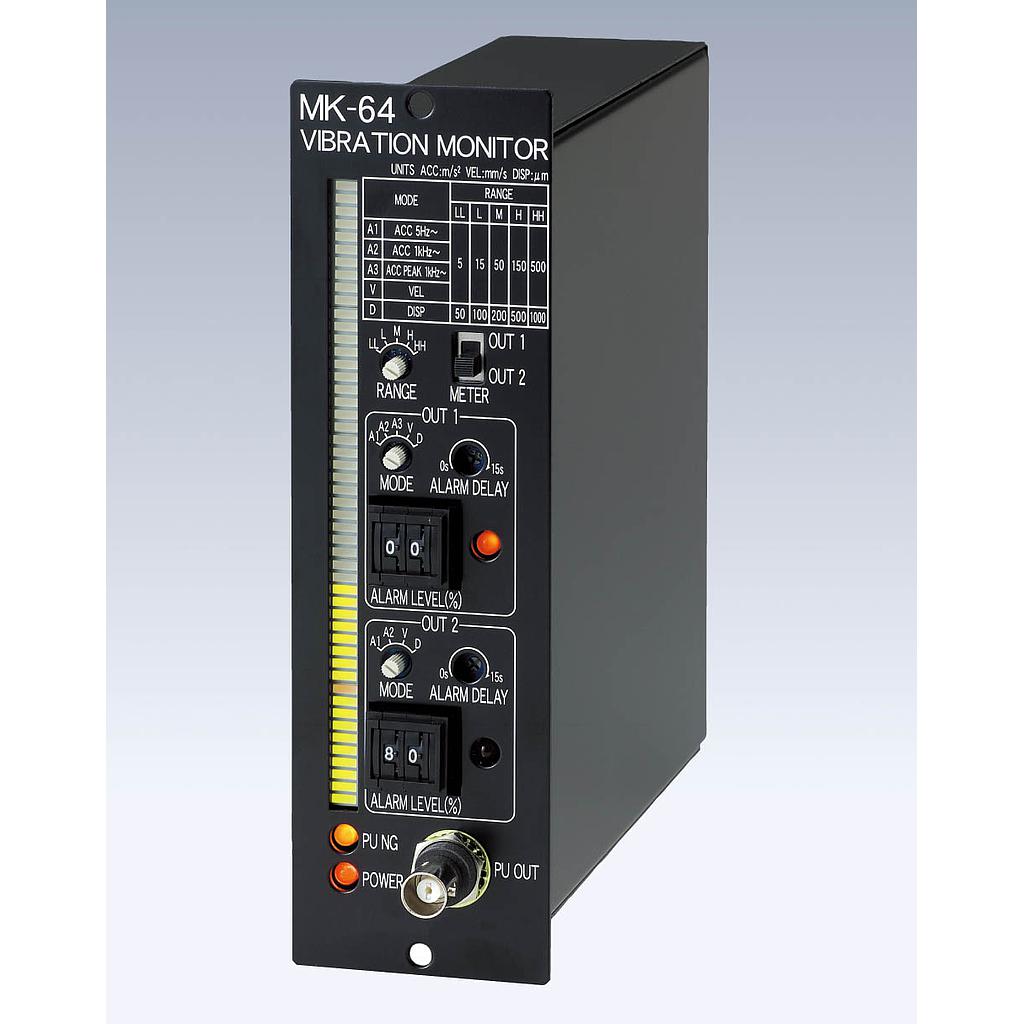

Vibration Pickup: Piezo-electric acceleration type 5.1mV（m/s2) (50mV/G)
Measuring mode & frequency range:
A1 Acceleration OA (5Hz to 20kHz)
A2 Acceleration OA (1kHz to 20kHz)
A3 Acceleration PEAK (1kHz to 20kHz)
V Velocity OA (5Hz to 1kHz)
D Displacement (p-p) (5Hz to 1kHz)
Measuring range 5 ranges in each mode:
A1 5, 15, 50, 150, 500 m/s2
A2 5. 15, 50, 150, 500 m/s2
A3 5, 15, 50, 150, 500 m/s2
V 5, 15, 50, 150, 500 mm/s
D 50, 100, 200, 500, 1000 μm
Accuracy:
Conversion error: 0.2％F.S
Measurement condition:
Acceleration (A1) "Sine wave at 1kHz 10m/s2" in 50m/s2 range
Velocity (V) "Sine wave at 155.97Hz 10mm/s" in 50mm/s range
Displacement (D) "Sine wave at 70.46Hz 50μm" in 200μm range
Non-linearity:
Acceleration(A1),(A2) ±1% F.S.
Velocity(V)，Displacement(D) ±5% F.S.
Measurement condition: at 50m/s2, 50mm/s and 500μm in the range of full scale 10% to 100%
Range switching error: ±3%
Measurement condition: Error against original input data, at measurement of input signal equivalent to 20% in full scale range, at one-step rougher range
Alarm output:
One upper limit level in each of OUT1 and OUT2
Output: Relay contact 1a
Contact capacity 5W(AC 100V 0.05A, DC 24V 0.2A) (max. voltage AC110V DC100V, max. current 1A)
An alarm is outputted after the time (0 - 15 seconds) set up by the on-delay timer, from the time of measured value at exceeding an alarm level.
An alarm is not outputted if the measured value is below alarm level during the delay time.
Output:
DC 4 to 20mA Allowable load resistance under 500Ω (Terminal block on the back side)
(Equivalent to P-P at Displacement mode only, equivalent to O-P at other modes)
AC PU through signal (5.1mV/(m/s2)) (Output from BNC connector on the front panel)
(PU through signal is outputted at original detected signal.)
Operating temperature: -10 to 60 degrees Celsius (No condensation)
Power supply: AC 85～264V 50/60Hz, below 10W (Fuse rated 0.5A)
Dimensions: 54W × 180H × 160D mm (No fitting and protrusions included in external dimensions)
Mass: Approx.880g
