Measuring Range: 1μΩ-2MΩ
Basic Accuracy: 0.05%
Reading: 5 1/2 digits, Maximum 1150000 Number Display Digits
Measuring Speed: 4 - 35 times/second
Measuring Mode: Temperature Compensation, Standard
Range Mode: Automatic, Hold, Manual Selection
Trigger Mode: Internal, Manual, External
Delay Time: 0 — 9999ms, Step by 1ms
Calibration Function: Short Circuit Reset, Reset, Load Correction
Temperature Measurement: -10.0℃ to -99.9℃, Sensor: PT100, Accuracy: 0.2℃
Temperature Compensation Function: Yes (Resistance Measured Value Converted to Resistance Value at Set Temperature)
Test Terminal Configuration: Four Terminals (2 Detection Terminals + 2 Drive Terminals) and External Shield Ground
Display Mode: Direct Reading, Δ%
Test Range: 10mΩ~1MΩ, 8 ranges
Sorting: 3 Ranges, Absolute Value/Percentage
Display: 24 True Color, Resolution of 480×272 TFT LCD
Storage: U Disk, More Than 500 Groups
Interface: Standard RS232C HANDLER, USB HOST
Standard Accessories: JK26050S Test Cable, Power Cord, Warranty Card, Communication Software
Optional Accessories: 26009BSMD Test Clamp, 26008ASMD Test Box, Communication Software Customized
Size:
Upper Frame Size: 215mm × 87mm × 335mm
Shape Size: 235mm × 105mm × 360mm
Net Weight: 4kg
Manual

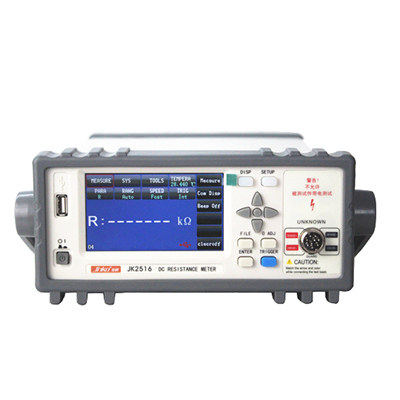

JK2516 series is a high-precision dc resistance tester series, which can be used to detect coils, inductors, transformers, motors, Relay contact resistance, connectors, resistors, fuse, cable resistance, PCB line resistance, resistance welding hole, conductive film, Metal detection, etc. It is a kind of low resistance tester with high speed, high precision, high performance that can meet the production quality assurance, Incoming goods inspection and laboratory measurement requirements, it can also be applied to automated test equipment.
Features
■ Brand new 32-bit processor core, data completely foreign first-class equipment
■ 4.3 inch true color TFT screen
■ U disk directly save test results, save more convenient
■ The basic measurement accuracy up to 0.05%
■ built-in comparator, HI、LO、IN
■ With more than 100 group set file save or calls，U disk can be extended to more than 500 set of test file or call
■ Can be realized upgrade and update through USB HOST instrument software version
■ U disk can support format FAT16, FAT32 file system
■ The standard HANDLER, USB HOST, USB DEVICE, optional RS232C, GPIB interface
