Temperature Range: -20°C ~ 120°C
Cold Source: Chilling plate
Display Accuracy: ±0.1°C (Full temperature range)
Stability: ±0.1°C
Vertical Temperature Field: Within 30mm from the bottom of the hole, ≤±0.2°C
Horizontal Temperature Field: ±0.05°C (Full temperature range)
Well Depth: 160mm
Diameter of Uniform Temperature Block: 32mm
Calibration Hole Diameter: Standard: 4mm, 6mm, 8mm, 10mm (can be customized)
Calibration Quantity: 4 (can be customized)
Resolution: 0.01°C
Display: LCD ℃ or ℉
Control Method: Touch screen, automatically adjust power and temperature difference
Heating Time: 20°C → 100°C: 20min, 20°C → 120°C: 30min
Cooling Time: 20°C → 0°C: 5min, 20°C → 10°C: 8min, 20°C → -25°C: 20min
Battery Endurance:c
Keep -20°C refrigeration work: 220min
Keep 100°C heating work: 240min
Dimension: H290*W155*D265mm
Weight: 10kgs
Power Supply: Built-in lithium battery
Calibration Points: -20°C, 0°C, 20°C, 50°C, 100°C, 120°C
Work Condition: 15°C ~ 60°C, 80%RH
Accessories: Temperature block (aperture 10/8/6/4mm), Charger, high temperature cotton

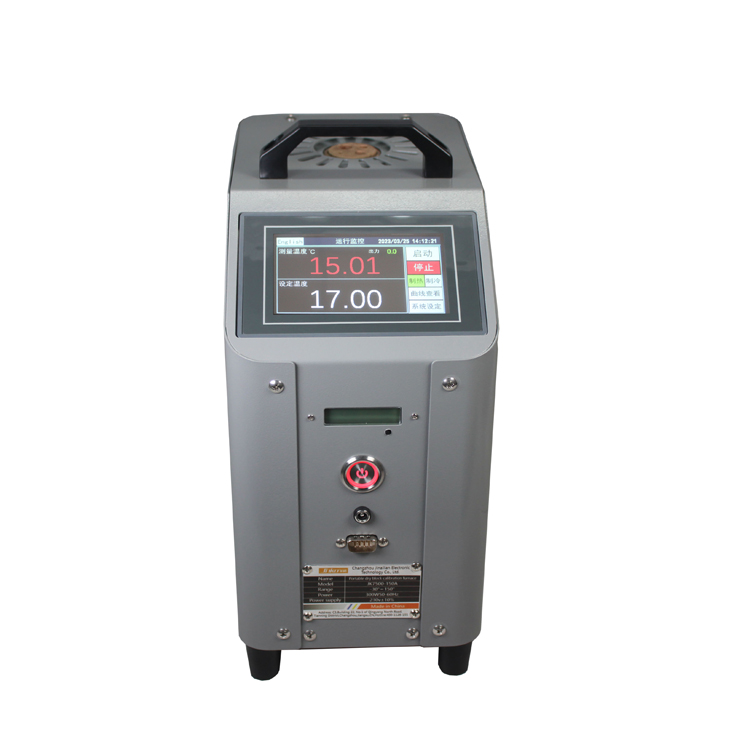

Product introduction
Dry well furnace is also known as dry well, dry well furnace, dry measuring furnace, temperature measuring furnace, temperature calibrator, dry body temperature calibration furnace. The dry well furnace is a very traditional on-site heat source (temperature field) that is easy to carry, with fast heating and cooling speed. The dry well furnace adopts a highly stable temperature controller, which is easy to carry and does not need to place liquid.
Dry calibration furnace reaches the predetermined temperature point and the temperature stabilization time is 5 to 10 times faster than the constant temperature bath, which can greatly save the time of the calibration personnel and improve the temperature verification speed. The portability of the dry calibration furnace allows it to perform calibration work on site, With built-in lithium battery power supply, it can work for 6-8 hours，thereby solving the difficulty in transportation and movement of the thermostatic bath.
The soaking block adopts the alloy material with good thermal conductivity. It is technically synchronized with advanced technologies at home and abroad, and is at an advanced level in terms of insertion depth, horizontal temperature field, and vertical temperature field. Used within the required temperature range, it is widely used in pharmaceuticals (GMP wet heat sterilization, dry heat sterilization), machinery, ships, chemicals, biological products, power plant substations, steel plants, measurement testing, scientific research, etc., of which these Industries that require on-site temperature calibration.
