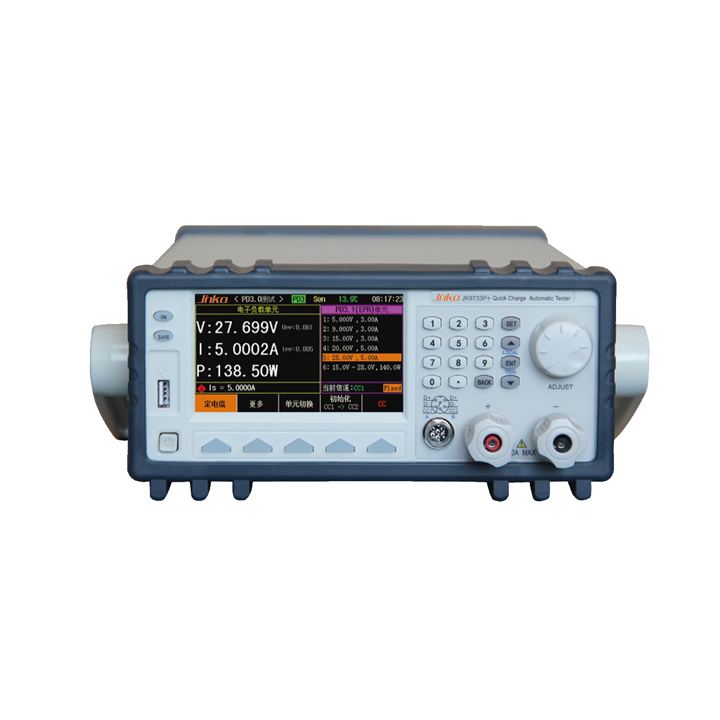

JINKO JK9723P+ Quick Charge Automatic Tester (150W, 0-150V, 0.1mA-30A)
Manufacturer: JINKO Model: JK9723P+ - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Rating
Input Power: 150W
Input Voltage: 0-150V
Input Current: 0.1mA-30A
Load Accuracy:
Measuring Range 0-15Vm, Precision ±(0.05% + 0.03% FS), Resolution: 0.1mV
Measuring Range 15V-150V, Precision ±(0.05% + 0.03% FS), Resolution: 1mV
Measuring Range 0-3A, Precision ±(0.05% + 0.03% FS), Resolution: 0.01mA
Measuring Range 3-30A, Precision ±(0.05% + 0.03% FS), Resolution: 0.1mA
Fast Charging Protocol Part
D+D- Voltage: BC1.2/APPLE 2.4A
PD Protocol: PD2.0 / PD3.0 / PPS
PD Protocol: NO
QC Protocol: QC2.0 / QC3.0 / QC4+
MTK Protocol: PE1.1 / PE2.0
Samsung: AFC
Huawei: FCP/SCP
OPPO: VOOC/SVOOC
VIVO: VSFCP
Spreadtrum: SFCP
UFCS: UFCS
Functions
CC Line: CC1/CC2 Automatic Turnover
D+D-: D+/D- Automatic flip
E-marker: Internally Installed
Ripple Test: Ripple
Other
Outline Dimensions: 215mm × 88mm × 350mm
Power Supply: 198-242VAC, 99V-121VAC, 47.5-63Hz
Performance characteristics
►Built-in various fast charging protocol detection and deception:PD, QC,HUAWEI, OPPO, VIVO, SAMSUNG,MTK, etc.
►Support CC line front and back test, PD packet comparison.
►Support D+/D- double-sided A/B test, built-in E-marker chip, realize the front and back side test of CC line in charger 5A mode(only CH97x3P+).
►500KHz synchronous sampling, adjustable filtering speed, 10uA, 0.1mV stable resolution output.
►Voltage/current ripple (Vpp/lpp), peak value (Vp+/lp+), valley value(Vp-/lp-) measurement.
►50KHz dynamic load mode (DYNA) and peak valley measurement.
►SCPI protocol, convenient for program-controlled load and protocol.
►4.3-inch TFT high-definition color screen display, Chinese and English operation interface optional
►U disk software upgrade function, always keep the latest version.
►USB data storage function, convenient for data recording.
►Standard Handler and electrical isolation RS232 interface, convenient for signal output and data communication.
