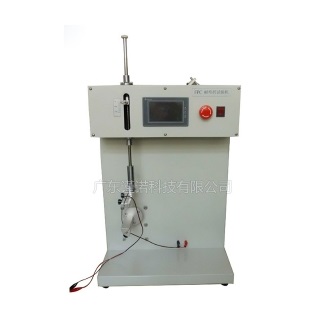

Jinuosh L-FPC FPC Bending Resistance Testing Machine (10-170°, 10-120timres/min)
Manufacturer: Jinuosh Model: L-FPC Origin: China Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Test angle: 10-170 degrees (touch screen digital setting)
Test speed: 10-120 times/min
Test station: 1
Test stroke: 15-100mm (manually adjustable)
The maximum width and opening width of the test fixture: 80mm (specifically subject to the requirements of each customer's product)
Optional bending radius: 0.4mm, 0.8mm, 1.2nm, 2.0mm, other specifications can be customized (two standard)
Test fixture: lower end movable fixture and a set of upper movable fixture (according to different The product type can be customized to design fixtures)
Test times counter: 0-999999 times (the touch screen number can be preset, the number of times reached and the product breaks automatically stop)
Test function: touch screen to set the angle, number of times, speed, etc., with a unique turn-on function, disconnect the automatic stop counting function, and automatically find the original
Machine size (L×W×H); 450×380×700mm
Machine weight: about 40kg
Power supply: AC220V, 50HZ
