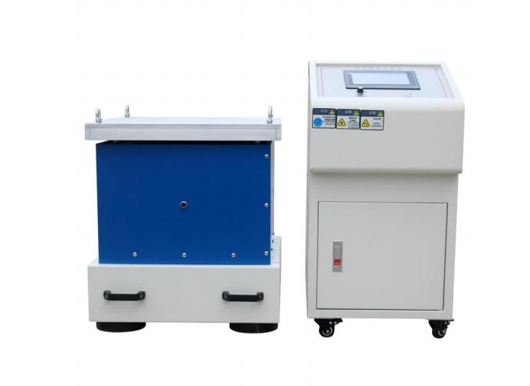

Jinuosh LT-ZD-E500 Electromagnetic Vibration Test Bench (70kg)

Test load: 70KG

Vibration direction: Vertical + horizontal + front and back (automatic switching, can run different frequency vibration direction at the same time)

Table size (mm): 500*500

Amplitude (P-P): 0-5mm (random, varies with frequency, adjustable)

sweep frequency: 1-2000HZ can be set arbitrarily (real standard back and forth scan frequency)

maximal acceleration: 20g customizable speed

Indicator function: Frequency modulation, frequency sweeping, time, program

precision: The frequency can be displayed to 0.1Hz with precision of 0.1Hz

Programmable functions: 1-600HZ, 1-8 segments can set the frequency and time arbitrarily

Multiplication power (0.1Hz): 8 Increase by multiples

① low to high frequency

② high to low frequency

③ low to high and then low frequency/cyclic

Logarithmic power (0.1Hz):

① Down to up frequency

② up to down frequency

③ down to up to down frequency--3 modes logarithmic/cyclic

Vibration waveform: sinusoidal wave

Time control: Time is optional

Power: 1.2KW
