Test Table Size: 1000 x 700 mm
Standard Anvil Dia: Universal Ball Joint ɸ 200mm anvil
Applicable Specifications: JIS B 7721 COMPRESSION / TENSION TESTER CLASS 0.5
Stroke: 550mm
Length Resolution: 0.1 or 0.01 mm (convertible)
Length Accuracy: Within ± (0.05+0.0001L)mm (L is arbitrary length in mm)
Test Speed: 1~1000mm/min
Cross Head Control: Precision ball screw and AC servo motor controlled
Move Key Function: High Speed : 600 (mm/min) Step (Inching) 1 (mm); Medium Speed : 60 (mm/min) Step (Inching) 0.1 (mm); Low Speed : 6(mm/min) Step (Inching) Noting
Capacity: Main body is capable for 2kN
Load Cell: 3 load cells (Useful for unbalance load and precision measurement)
Range Changeover: 4 Ranges Manual or Automatic
Load Resolution (Measurement Range/ Load resolution): 2000N/ 0.1N; 1000N/ 0.1N; 500N/ 0.1N; 200N/ 0.01N
Load Accuracy: ± 0.5{eb9cfd4e3b516869cb839b8b2c338ebd16b99827caa87fe8648376116c5dd92c} of Applied Load
Unit: N kN(kgf. lbt)
Protective STOP Function: STOP via Up/Down Limit Switches; STOP via range over; STOP via STOP key or Emergency STOP key; STOP via value set by testing software
Display: LCD LCD with CCFL Backlingt; Backlight lifespan 25.000h Half-reduced brightness lifespan; Display Area W147 x H110mm; Display Resolution 640 x 480 dot
PC Software: The tester alone can perform testing; MXR-01 (Urethane Foam testing mode)
Printer (Internal Printer): Thermal transfer dot printing; Print density 8 dot/mm; Effective print width 108mm; Print speed: 480 dot line/sec
Interface: RS232C; Photocoupler insulated input / output + common; Input 8 points output 8 points (judgment output); Analog output : FORCE, DISTANCE
Power supply: Single phase AC100V or AC200V
Power Rating: 300VA
Dimension: W1115 x D750 x H1980
Weight: Approx. 350kg
• Deliver High Precision Measurement via 3 load cells even if there is unbalance load. The tester alone can meet a variety of specifications such as JIS K6400-2, JASO B408 & etc.

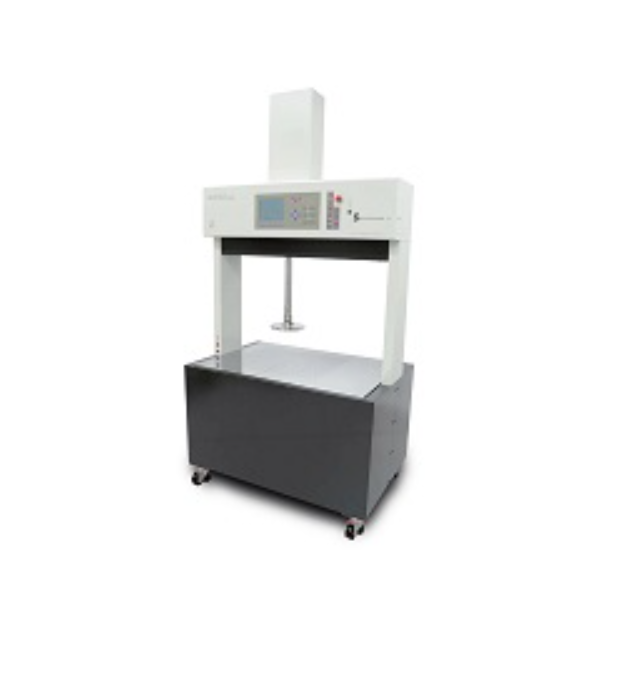

• This UFT series can satisfy a variety of urethane foam test. The 3 load cells enable this tester to deliver high precision load detection even in the presence of unbalance load. Test sample placed on the wide test table (1000 x 700mm) can be measured just as it is. For instance a car seat can also be place on the test table and measurement can take place as it is. The installed urethane foam testing program can change “{eb9cfd4e3b516869cb839b8b2c338ebd16b99827caa87fe8648376116c5dd92c}”, “Cycle” and “Time”.
• The tester also meets the Hardness Test and Deflection Test Specifications of Automotive Manufacturer under fixed load.
• Test Conditions and Results can be stored in USB Memory and export to Microsoft Excel for Test Inspections. The tester also adopts “Program Load” via USB Memory and it can also meet requirements of any custom made test.
• External control test using PC Software is also possible.
TYPE OF TEST
Hardness Test JIS K6400-2 Method A, B, C & D
Compression Deflection Test JIS K6400-2 Method A-1 & A-2
Compression Deflection Test JIS K6400-2 Method B
Micro Displacement Spring Rate Test
Stress Relaxation Test
Compression Load Test
External Control Test via PC
