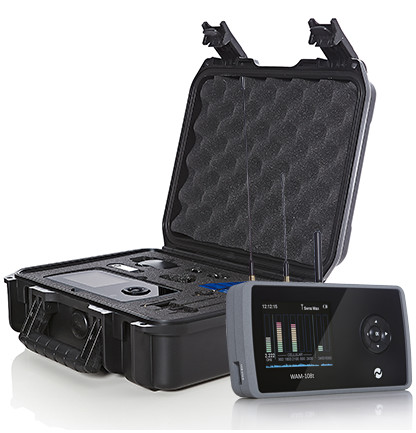

JJN Digital WAM-108t Multiband Wireless Activity Monitor (10MHz –14.0GHz)

- Wideband:

+ Input Frequency Range: 10MHz – 14000MHz (14.0GHz)

+ Sensitivity:

100MHz -49 dBm

200MHz -48 dBm

500MHz -47 dBm

1GHz -44 dBm

2GHz -50 dBm

5GHz -42 dBm

10Ghz -30 dBm

14Ghz -2 dBm

- Cellular Bands:

+ 4G 800MHz:

Band Width: 824 – 849 MHz

Out-of-Band Attn: >40dB typ

Min. Detection Level: -60dBm

+ 2G 900MHz:

Band Width: 880 - 915MHz

Out-of-Band Attn: >40dB typ

Min. Detection Level: -52dBm

+ 2G/4G 1800MHz:

Band Width: 1710 - 1785MHz

Out-of-Band Attn: >40dB typ

Min. Detection Level: -52dBm

+ 3G (UMTS) (WCDMA) 2100 MHz:

Band Width: 1925 - 1975MHz

Out-of-Band Attn: > 70dB

Min. Detection Level: -76dBm

+ 4G 2600MHz:

Band Width: 2500 – 2570 MHz

Out-of-Band Attn: >40dB typ

Min. Detection Level: -53dBm

- 2.4 & 5 GHz Wireless Bands:

+ 2400MHz WIFI/BLUETOOTH etc.:

Band Width: 2400 – 2485 MHz

Out-of-Band Attn: >40dB typ

Min. Detection Level: -56dBm

+ 5000MHz WIFI/WLAN etc.:

Band Width: 4900 to 5950MHz

Out-of-Band Attn: >40dB typ

Min. Detection Level: -52dBm

-Display: TFT Colour 3.5’ High Contrast Graphic Display

-Battery:

Internal Li-Ion rechargeable

Operating Duration – fully charged battery 8 hours

Charge Time – 4 hours

-Operating Temperature Range: -15 to +50 degrees C - Relative Humidity < 90%

-Dimensions: 186mm x 195mm x 34mm (max)

-Weight: 600 g – Main Unit

-Signal Processing and Control: RISC Based Microcontroller with real time clock

-Event Log: Maximum 4000 Events

-USB Socket: For USB Stick Event Log download only


SUPPLIED ACCESSORIES

+ Flexible Multiband Whip Antenna Long (Wideband)

+ Flexible Cellular Antenna (Medium)

+ Rigid 2.4 GHz & 5 GHz Antenna (Short)

+ Directional High Gain Antenna – LPA14

+ 5V DC Charger - 110V to 240V AC input (Auto Switching)

with International Adaptors

+ USB Memory Stick with Data Viewer Software for Windows

based computers.

+ Earphones

+ High Protection Military Standard Carry Case
