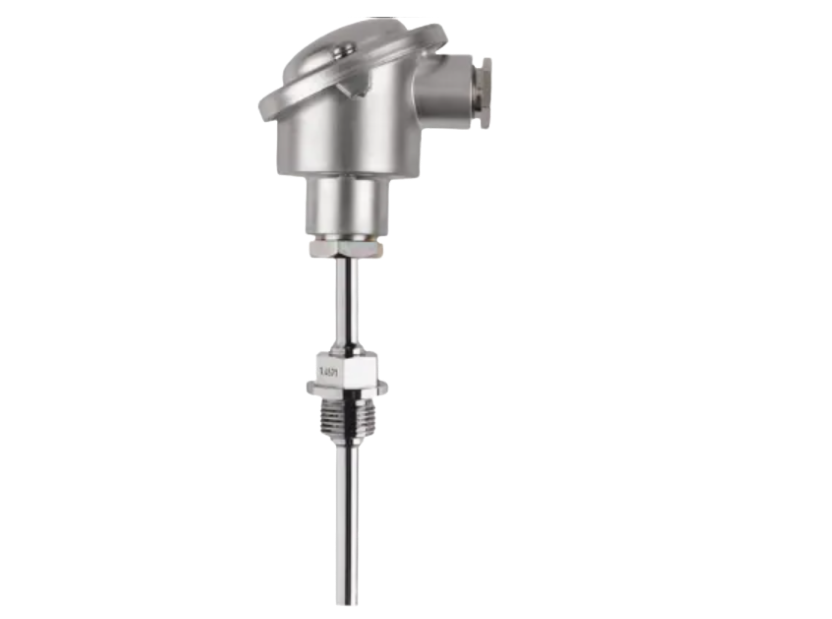

Jumo 902020 Screw-in RTD temperature probe (-50~+400 °C, Part No.: 00055562)
Manufacturer: Jumo Model: 902020 P/N: /10-402-1003-1-9-160-104/000 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Order code: 902020/10-402-1003-1-9-160-104/000
Operating temperature (additional versions upon request): -50 to +400 °C (standard)
Measuring insert (additional versions upon request): 1× Pt100 in two-wire circuit
Tolerance class according to DIN EN 60751:2009 / IEC 60751:2008 (additional versions upon request): Class B (standard) (-50 to +500 °C)
Protection tube diameter D: Ø 9 mm
Insertion length EL in mm (EL up to 1000 mm): 160 mm
Process connection (additional versions upon request): Screw connection G 1/2
Extra codes: None
