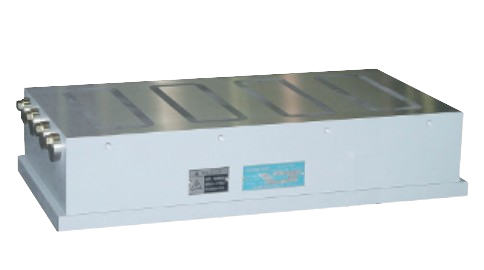

Designed for heavy duty cutting by a milling machine and planomiller. Most suitable for powerful chucking of thick workpieces and high-speed cutting where a large cutting force is exerted.
Nominal Size: 150（5.90）× 300（11.8) [mm(in)]
Work Face [mm(in)]
B1: 150 （5.90）
L1: 300（11.8）
Le: 240（9.44）
Be: 90 （3.54）
Pole Pitch [mm(in)]
P1: 228（8.97）
P2: -
No.of Poles: 1
Mounting Face [mm(in)]
B2: 156 （6.14）
L2: 350（13.7）
h: 18 （0.70）
Height [mm(in)]
H: 90 （3.54）
Mounting Hole [mm(in)]
G: 14
Voltage: 90 VDC
Current: 0.45A
Mass: 28kg/ 61lb
