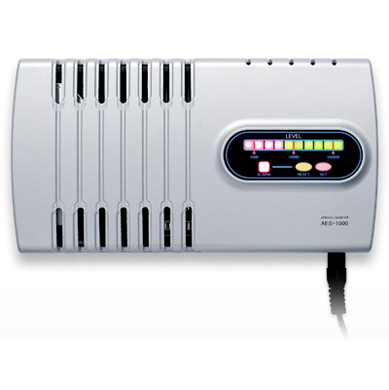

Manufacturer: Kanomax
Model: AES-1000
Origin: Japan
Warranty: 12 months
Display: 10 x LED lights shows equivalent of Class 100 ~ Class 100,000
Detection method: Light Scattering
Min. detectable size: 0.5 µm
Air Sampling method: Updraft airflow generated by built-in heater enables air sampling of approx. 0.26 gal per minutes
Cleanliness Class: From level of equiv. of ISO5 / Class 100 ~ ISO8 / Class 100,000
Alarm Display: Alarm LED light comes on when reaching to setting level
Alarm Output: TTL open collector output in sync with alarm display
Interface: Ethernet x 1 port
PowerSupply: DC12 V +/-10% 500mA
Operating Condition: 0ºC~40ºC 30% RH~80% RH
Dimensions: 7.5 x 4.0 x 1.5 inches (192 x 102 x 37 mm)
Standard Accessories: Meter, AC adapter, Mounting plate, Operation manual
- Features:
Stable and sensitive detection for Particulates of 0.5 microns and larger. Easy-to-read air cleanliness level, equivalent of ISO5 / Class 100 – ISO8 / Class 100,000.
Unique air sampling method using “heater” to generate updraft, preventing choked flow. Suction pump is not necessary.
Alarm comes on when the setting level goes beyond the required cleanliness, while monitor gives alarm signal output.
Link to Ethernet system with purpose of monitoring at multiple location.
Long life laser. 20,000 hours.
Compact and light, easy installation. Low cost.
- Applications:
Monitor and verify clean rooms/Pharmaceutical/Semi Conductor/Food Industry.
Buffer zero monitoring and management.
IAQ investigation.
