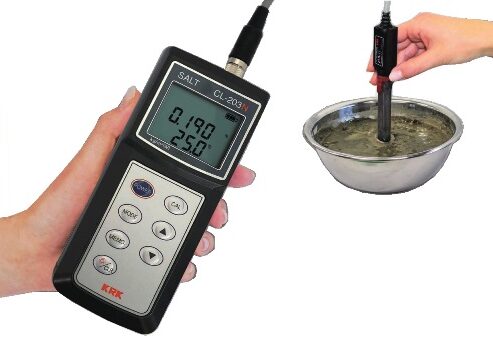

KASAHARA CL－203N Salt Meter (0.001 ~ 1.000%)

Measurement target: Measurement of salinity of ready-mixed concrete, fine aggregates, aqueous solutions, etc.

Measuring range:

Salinity: 0.001 ~ 1.000% (equivalent to 10 ~ 10000mg/L)

Chloride content: 0.001 ~ 1.999 kg/m3 (After water content is set)

Temperature: 0 ~ 50°C

Electromotive force: -1000mV ~ 1000mV (output for electrode inspection)

Resolution:

Salinity: 0.001% (equivalent to 10mg/L)

mV: 1mV

Water temperature: 0.1°C

Repeatability:

Salt concrete: within ±2% (for equivalent input)

Water temperature: within ±0.5°C (for equivalent input)

Temperature Compensation: Automatic

Memory function: Up to 30

Ambient temperature: 0～45°C

Calibration method:

(1) LOW calibration with 0.1% standard solution

(2) HIGH calibration with 0.5% standard solution

External dimensions:

Body: 70 (W) × 40 (H) × 173 (D) mm

Electrode: Ф16.8×192

Weight:

Body: Approx. 290g

Electrode: Approx. 130g (including cable 1m)
