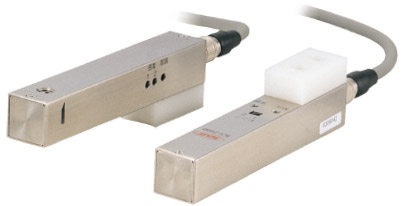

Kasuga KS-2100 Sensors

Detection method: Vibration-type static sensor

Measuring ranges

Range 1: ±1 - ±2000V

Range 2: ±0.01 - ±20.00kV

Analog output: 0 - ±5V

Measurement precision: Within ±10%

Standard measurement distance

Range 1: 10 mm

Range 2: 50 mm

Alarm: LED lamp indication and external output of sensor failure

Power supply: DC12 - 24V±5％

Operating environmentTemperature: 0°C-40°C,Humidity: 65% RH or below (no condensation)

Mass: Approx. 100 g (not including cable)

Accessories: Dedicated 5 m cable (can be extended to 100 m)

Features

• The amplifier section (driver circuit) is incorporated into the detector section, resulting in a low price and compact dimensions.
• Allows low-cost building of typically expensive static monitoring systems.
• Permits switching between measuring ranges, allowing measurement over a wide range from low potential to high potential.
• The LED lamp informs of sensor failure and signals indicating the failure can be output externally.

Intended use

• Monitoring of charge quantity in the production process of flat-panel displays
• Monitoring of charge quantity of semiconductor wafers
• Monitoring of charge quantity during a process of handling LSIs or conveyance of printed wiring boards

Specifications

Dimensions [mm] and names of parts
