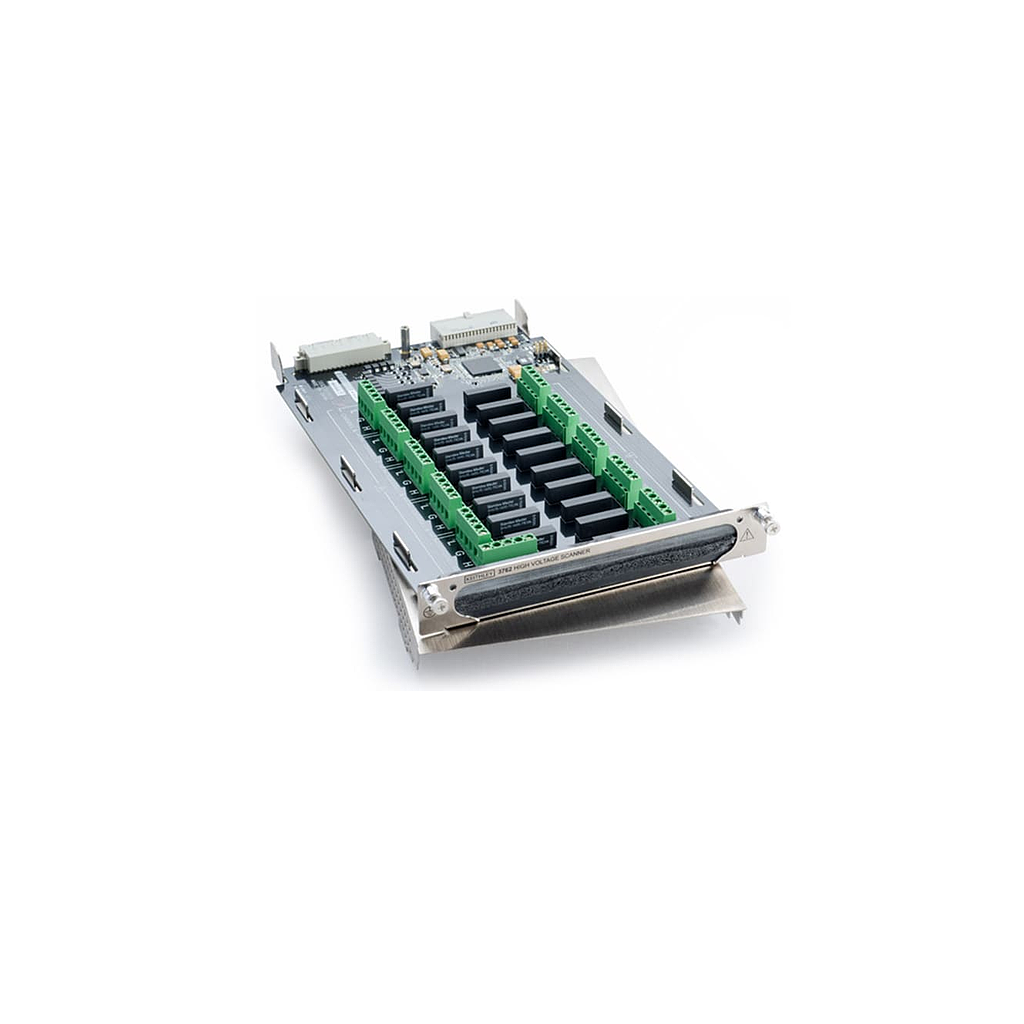

KEITHLEY 3762 10-Channel High Voltage Multiplexer Card
Manufacturer: KEITHLEY Model: 3762 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Channels Per Card: 10.
Contact Configuration: 2 Form A with user selectable shield or driven guard.
Connector Type: Screw terminals, #16AWG maximum wire size
Relay Drive Current: 80 mA per relay typ.
Maximum Switching Levels: 1000 V, 0.5 A, 10 W.
Maximum Carry Current: 1 A DC or RMS.
Contact Life: >108 closures (cold switching), >106 closures (hot switching at 1000 V, 1 mA).
Contact Resistance: <200 mΩ initial, <2 Ω for rated life.
Contact Potential: <35 µV per contact pair.
Actuation Time: <2 ms exclusive of mainframe.
Channel Isolation: >10^10 Ω, <10 pF.
Differential Input Isolation: >10^9 Ω, <10 pF.
Common Mode Input Isolation: >10^9 Ω, <150 pF.
Common Mode Voltage: 1000 V peak.
EMC: Conforms with European
Union Low Voltage Directive.
Operating Environment: 0° to 50°C, 70% relative humidity up to 35° C.
Storage Environment: –25° to 65° C.
