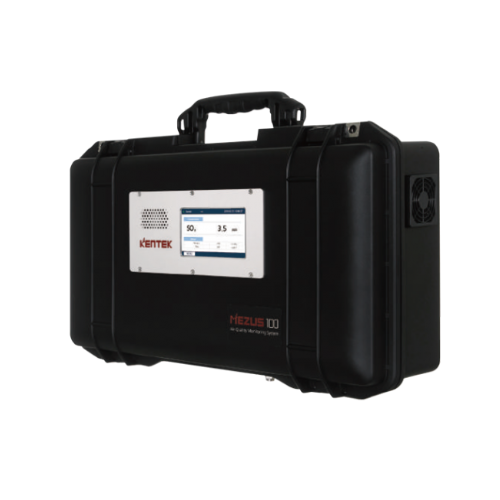

Kentek MEZUS 100 SO₂ Portable Analyzer (0.1 / 0.5 / 1ppm)

Measuring items: Sulfur Dioxide(SO₂) in ambient air

Measuring method: Ultraviolet fluorescent method (UVF)

Ranges: 0 - 0.1 / 0 - 0.5 / 0 - 1ppm (selectable)

Lower Detectable Limit: Less than 0.5ppb

Repeatability: within ±1% of span gas concentration

Zero drift: Less than 2ppb

Span drift: within ±1 % / full scale (1 day)

Response time(95%): Less than 120 seconds (T95)

Linearity: within ±1 % / full scale

Precision: within 1 % of reading or 1 ppb

Ambient temperature: 5 - 40℃

Analog output: 0 - 1V / 0 - 5V or 4 - 20mA (option)

Sample flow rate: Stabilized flow control by 700cc/min Critical Orifice

Particulate filter: 47mm Teflon® Filter

Display: 5 inch Graphic LCD

Comport: Ethernet, USB 2.0

Power requirement: 220VAC/60Hz or 230VAC/50Hz

Internal data memory: Measuring data, Operation history, Messages, Alert (store up to 1year)
