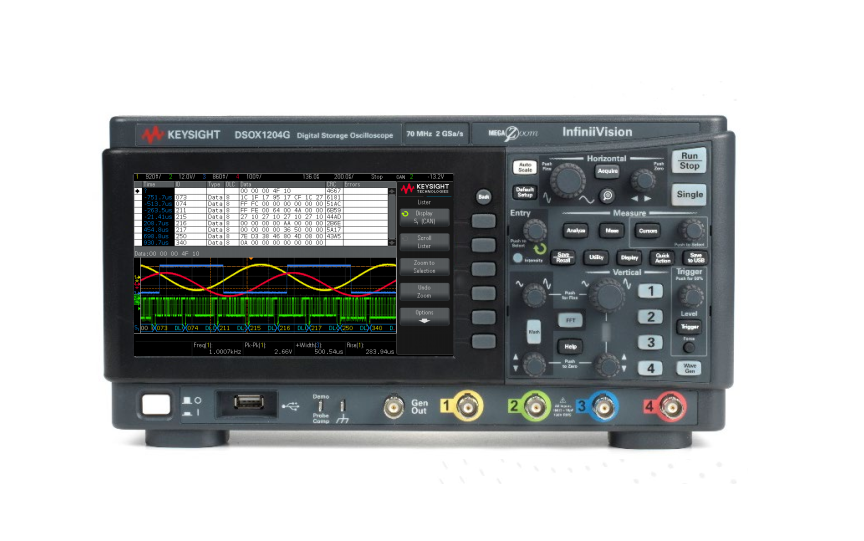

KEYSIGHT DSOX1204G InfiniiVision Oscilloscope (70Mhz, 4 CH, 2 GSa/s, WaveGen 20MHz)

Bandwidth:

70 MHz (base bandwidth)

Analog channels: 4

External trigger: Back panel input (not displayed)

Sample rate per channel (max):

2 GSa/s (one- or two-channel operation)

1 GSa/s (if external trigger view is turned on)

Memory depth per channel (max):

2 M points (one- or two-channel operation)

1 M points (if external trigger view is turned on)

WaveGen: 20-MHz function generator

Bode plot: Standard

Maximum input voltage: 150 Vrms, 200 Vpk

Waveform update rate 200,000 waveforms per second

Serial protocol analysis Standard : I²C, SPI, UART/RS-232, CAN, LIN

Waveform math: Add, subtract, multiply, divide, FFT (magnitude and phase), low pass filter

Automatic measurements: 14 amplitude, 14 timing, and 4 pulse count measurements

Display: 7-inch TFT LCD WVGA

Connectivity: USB 2.0 (host and device), LAN

Dimensions (W x H x D): 314 mm (12.4 in) x 165 mm (6.5 in) x 130 mm (5.1 in)

Weight Net: 3.23 kg (7.1 lbs), shipping: 4.2 kg (9.2 lbs)
