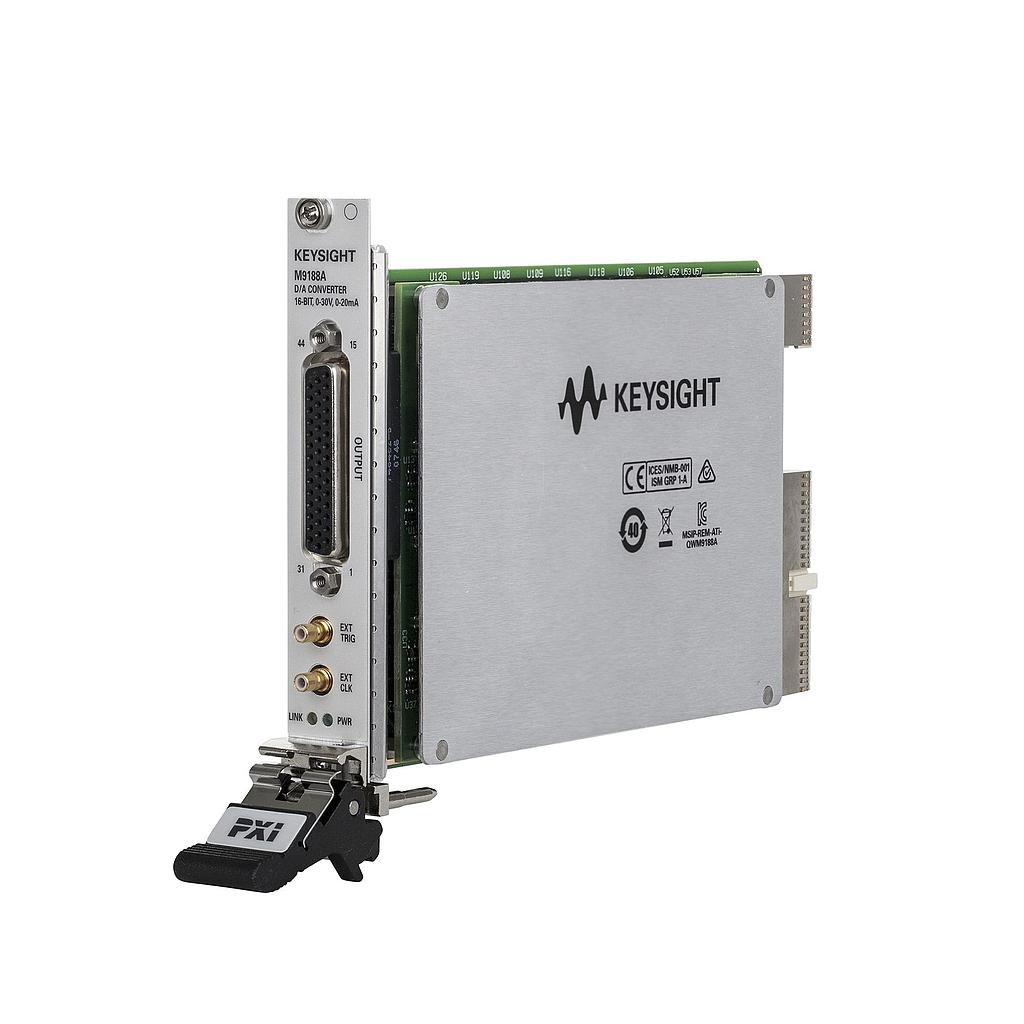

KEYSIGHT M9188A Dynamic D/A Converter (16 CH, 16-Bit, 30 V/20 mA)
Manufacturer: KEYSIGHT Model: M9188A Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Number of channels: 16 channels (4 banks, 4-channel each)
Resolution: 16-bit
Update rate: 500 kSa/s max per channel
Voltage output range: 0-30 V
Voltage output accuracy: ± (0.1% + 5 mV) (23 ± 5 °C, 1 year)
Current output range: 0-20 mA
Current output accuracy: ±(0.15% + 10 µA) (23 ± 5 °C, 1 year)
On-board memory: 1 MSa per channel
Storage temperature: -40 °C - +70 °C
Operating temperature: 0 °C – 55 °C
Weight: 0.6 kg (1.32 lbs.)
Dimension (W X D X H): Fit within one PXI-H or PXI-1 slot
