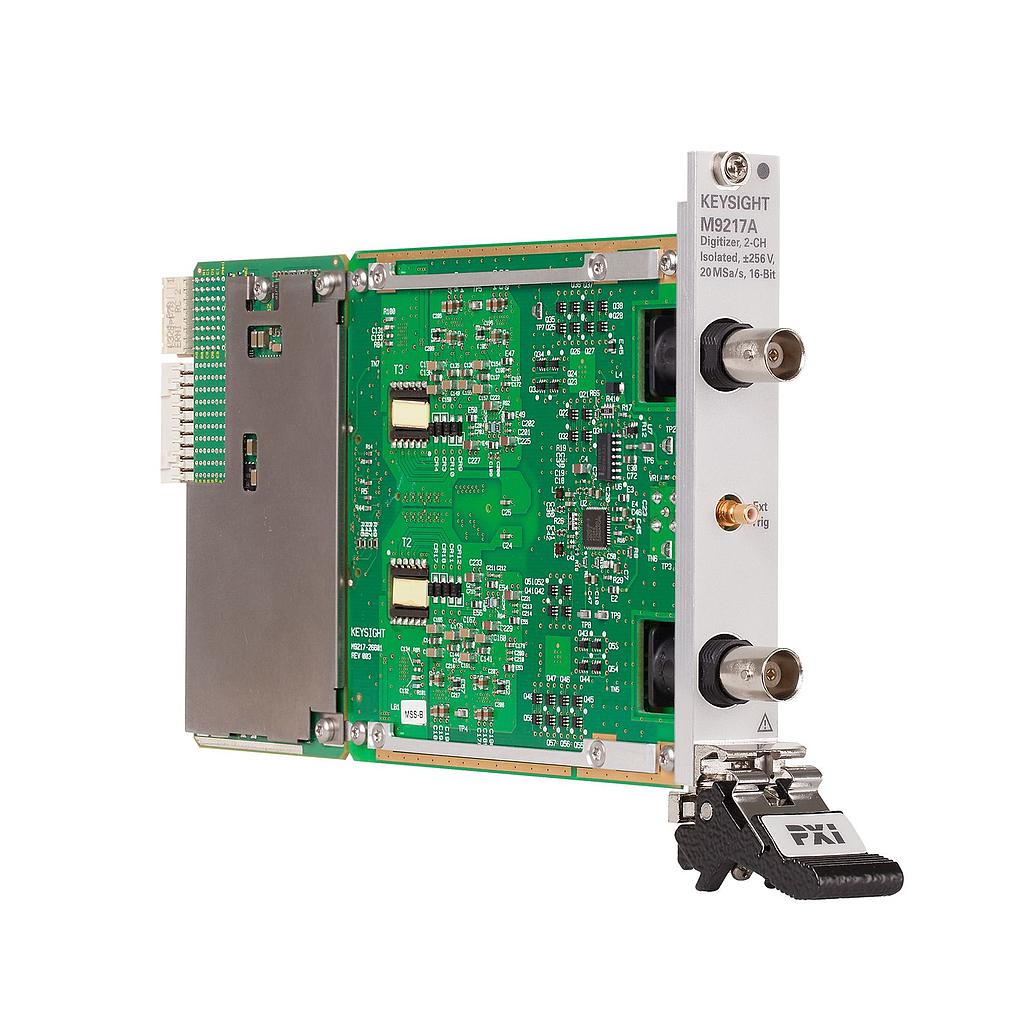

KEYSIGHT M9217A PXIe Isolated Digitizer (2-channels, 16-bit, ±256 V, 32 Msa/Ch 2-channels, 16-bit, ±256 V, 32 Msa/Ch memory)
Manufacturer: KEYSIGHT Model: M9217A Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
2-channel isolated, with ADCs per channel, simultaneously sampled channels
Max sample rate: 20 MSa/s
Sample resolution: 16 bits
Isolation voltage (low to chassis): +40 V
Maximum input range (high to low): +256 Vpk
Input impedance: 1 MW // 40 pF
Input coupling: DC or AC
AC cutoff frequency: < 10 Hz
Input ranges: ±256 V, ±128 V, ±64 V, ±32 V, ±16 V, ±8 V, ±4V, ±2 V, ±1 V, ±500 mV, ±250 mV
Maximum overvoltage protection: ±400 Vppk
Analog bandwidth (-3 dB): 20 MHz typical
