KEYSIGHT N7007A Passive Probe (400MHz, 1kV, 10:1, -40~85°C)
Manufacturer: KEYSIGHT Model: N7007A - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Temperature range: -40 ° C to +85 °C
Division ratio: 10: 1
Bandwidth: 400 MHz
Max. Input voltage: 1 kV
Cable length: 2 m

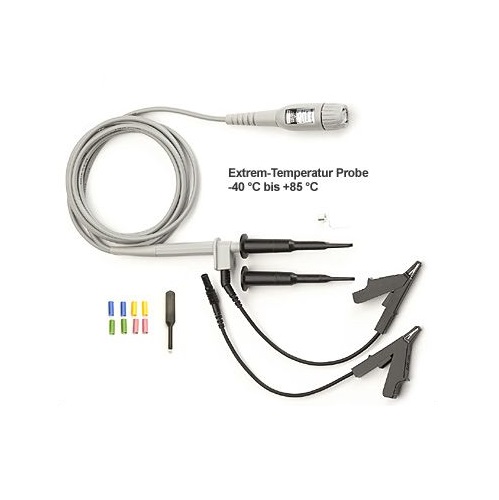

Keysight N7007A / Passive probe for high temperatures (extreme temperature probe) -40 ° C to +85 ° C, division ratio 10: 1, bandwidth 400 MHz, max. Input voltage 1 kV, 2 m cable length with BNC / readout connection.
The cost-effective passive probe N7007A offers a bandwidth of 400 MHz with a 10: 1 input divider with high impedance. It is particularly suitable for measurements in temperature chambers since it can be used in a temperature range from -40 ° C to +85 ° C. Together with the robust probe tip set, it is ideal for measurements on ICs, electronic modules or circuits in temperature chambers.
This probe can be used with all oscilloscopes that have a BNC input with 1 MΩ input resistance.
