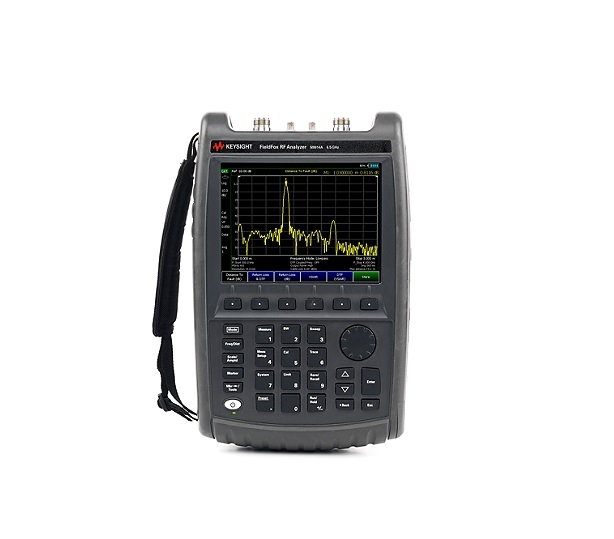

KEYSIGHT N9917A Handheld FieldFox Microwave Analyzer (CAT + VNA + SA; 18 GHz)

• Cable and Antenna Analyzer (CAT) - standard; Spectrum Analyzer - option; Vector Network Analyzer (VNA) - option

• Ports: 2

• Test port connectors: Type-N (f)

• CAT and VNA

Frequency: 30 kHz to 18 GHz

Frequency reference: -10 to 55°C

Aging Rate: ± 1 ppm/yr for 20 years (spec), will not exceed ± 3.5 ppm

Frequency resolution: 2.68 Hz

• Spectrum analyzer:

Frequency: 100 kHz to 18 GHz

Frequency span: Resolution: 1 Hz

Phase noise: Stability, SSB phase noise at 1 GHz

Resolution bandwidth (RBW), range (-3 dB bandwidth):

Zero span: 10 Hz to 5 MHz: 1, 3, 10 sequence

Non-zero span: 1 Hz to 5 MHz: 1, 1.5, 2, 3, 5, 7.5, 10 sequence

Video bandwidth (VBW): 1 Hz to 5 MHz in 1, 1.5, 2, 3, 5, 7.5, 10 sequence

Displayed average noise level (DANL): RMS detection, log averaging, reference level of -20 dBm, normalized to 1 Hz RBW

Third order intermodulation distortion (TOI): Two -20 dBm signals, 100 kHz spacing at input mixer, – 10 to 55°C

• Real-time spectrum analyzer (RTSA):

Maximum real-time bandwidth: 10 MHz

Resolution bandwidth: 1 Hz to 500 kHz

• Analysis bandwidth: Maximum bandwidth 10 MHz

• Dimension H x W x D: 292 x 188 x 72 mm (11.5" x 7.4" x 2.8")

• Battery: Lithium ion, 10.8 V, 4.6 A-h, 3.5 hours (typical)

• Weight: 3.0 kg or 6.6 lb. including battery

• What's Included:

AC/DC adapter

Localized power cord

Battery –rechargeable Li Ion

LAN cable

Soft carrying case with backpack and shoulder strap

Quick Reference Guide
