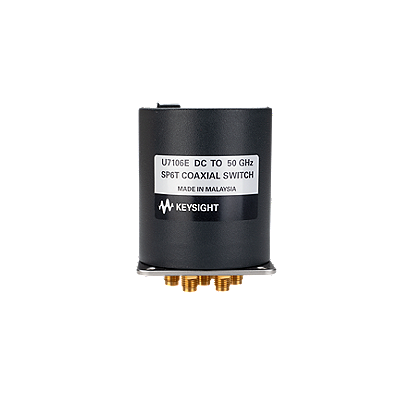

Operating Frequency: DC to 50 GHz
Configuration: SP6T
Isolation (dB), minimum
DC to 9 GHz: 95 dB
9 to 26.5 GHz: 85 dB
26.5 to 40 GHz: 75 dB
40 to 50 GHz: 70 dB
Insertion loss (dB): 0.35 + 0.023 x frequency (GHz)
Return loss (VSWR), maximum
DC to 4 GHz: 23.1 dB (1.15)
4 to 12.4 GHz: 20.8 dB (1.20)
12.4 to 20 GHz: 16.5 dB (1.35)
20 to 30 GHz: 15.6 dB (1.40)
30 to 50 GHz: 12.7 dB (1.60)
Switching time, maximum: 15 ms
Please read the datasheet for ordering suitable options
