KEYSIGHT Y1800A RF Training Kit and Lab Sheets

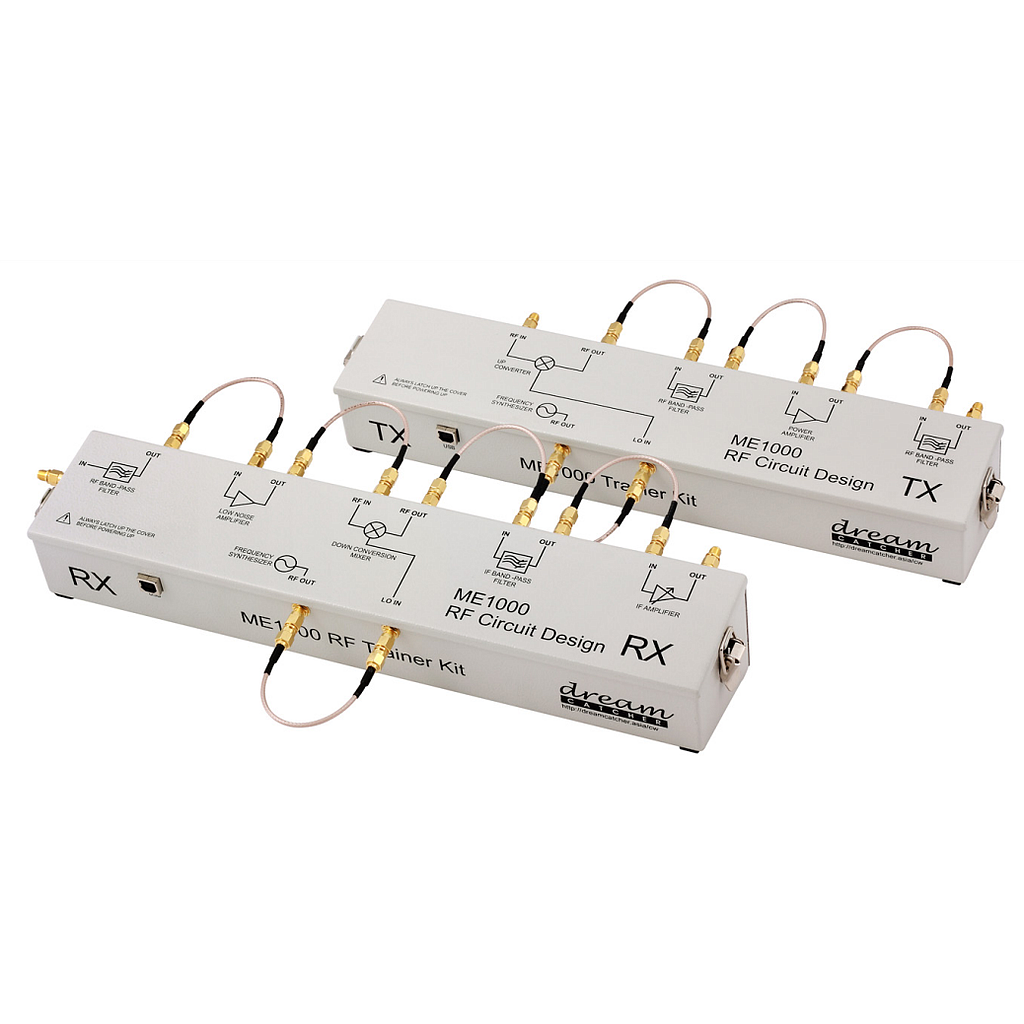

RF transceiver hardware specifications

RF transmitter unit

- RF Frequency synthesizer output power: −4.5 dBm (typical)

- RF Frequency synthesizer frequency range: 816 to 880 MHz

- RF Antenna frequency range: 806 to 960 MHz

- RF Antenna length: 210mm

RF receiver unit

- RF Frequency synthesizer frequency range: 816 to 880 MHz

- RF Antenna frequency range: 806 to 960 MHz

- RF Antenna length: 210mm

- General: Power source: USB; EMC design: Class B, Part 15 of FCC

Lab sheets

– Spectrum analysis - Understanding spectrum analyzer settings

– Spectrum analysis of frequency synthesizer and mixer – Harmonics, intermodulation, isolation

– Vector network analysis – Understanding S-parameter measurements

– Vector network analysis – Calibration and shifting of reference planes through port extension

– Analyzing filter and amplifier using spectrum analyzer – Frequency response, gain compression, harmonics

– Measurement and troubleshooting of RF transceiver

– Vector network analysis of RF filter – Transmission, reflection, impedance on Smith chart

– Vector network analysis of amplifier – Gain, isolation, gain compression, AM-PM conversion

Accessories

The following accessories are provided with the training kit

- TRM standard calibration kit: 1

- USB cable: 3

- SMA(m)-to-SMA(m) jumper cable, 0.18 m: 9

- SMA(m)-to-SMA(m) coaxial cable, 1 m: 2

- N(m)-to-SMA(f) adapter : 2

- RF power combiner: 1

- Antenna: 2

- Ground cable, 1 m: 2
