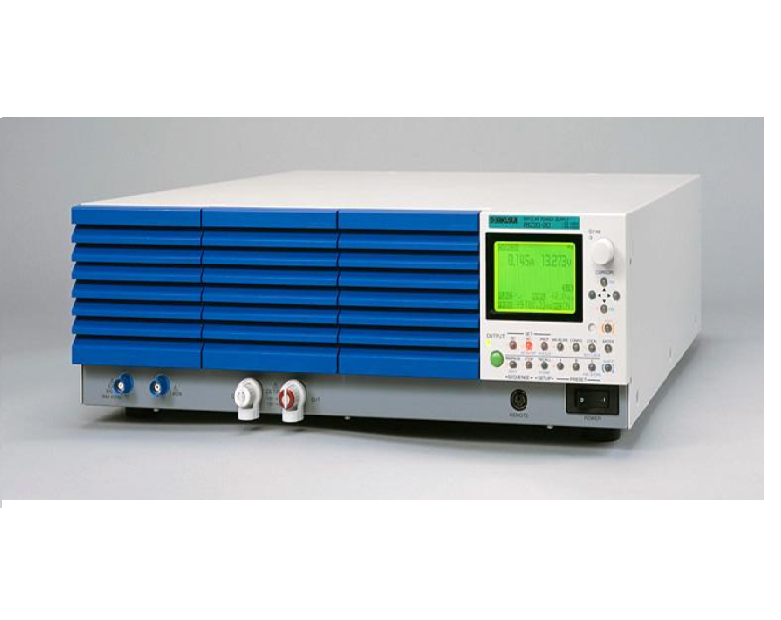

KIKUSUI PBZ20-20 DC Bipolar Power Supply (±20V, ±20A)
Manufacturer: KIKUSUI Model: PBZ20-20 Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Nominal input voltage: 100 Vac to 240 Vac, 50 Hz to 60 Hz
Output power: 400 W
Output voltage: ±20 V
Output current: ±20 A
1- Constant voltage (CV mode)
*DC Voltage:
Setting range: 0V to ±21V, 0V to 21V
Setting accuracy: ± (0.05 % of setting + 0.05 % of rtg)
*AC voltage:
Setting range: 0 to 42Vpp
Setting accuracy: ±0.5 % of rtg
*AC frequency:
Setting range: 0.01 Hz ~ 100.00 kHz
AC waveform
Type: Sine wave, square wave, triangle wave, and 16 user-defined arbitrary waveforms
Start phase: 0° to 359 °
Square wave duty cycle: 0.1 % to 99.9 % (f < 100 Hz)
Response: 3.5 μs, 10 μs, 35 μs, 100 μs
Ripple noise: 20 mV (TYP)
Load effect: ±(0.005 % of setting + 1 mV)
Source effect: 10 ±(0.005 % of setting + 1 mV)
2- Constant current (CC mode)
*DC current:
Setting range: 0 A ~ ±21 A
Setting accuracy: ±0.3 % of rtg
*AC curent:
Setting range: 0 to 42Vpp
Setting accuracy: ±0.5 % of rtg
*AC frequency:
Setting range: 0.01 Hz ~ 200.00 kHz
AC waveform
Type: Sine wave, square wave, triangle wave, and 16 user-defined arbitrary waveforms
Start phase: 0° to 359 °
Square wave duty cycle: 0.1 % to 99.9 % (f < 100 Hz)
Response time: 35 μs, 100 μs, 350 μs, 1 ms
Ripple noise: 3mA
Load effect: ±(0.01 % of setting + 1 mA)
Source effect: ±(0.01 % of setting + 1 mA)
3- Measurement display function
Measurement accuracy:
DCV : ± (0.05 % of rdng + 0.05 % of rtg)
ACV, ACV+DCV : ±(0.5 % of rdng + 0.1 % of rtg) ở 5 Hz ~ 10 kH
DCA : ±(0.3 % of rdng + 0.1 % of rtg)
ACA, ACA+DCA : ±(3 % of rdng + 0.1 % of rtg) ở 5 Hz ~ 10 kHz
Protection functions: Overvoltage, Overcurrent, Overheat, Power limit
Control functions: I/O
Interface: RS232C, GPIB, USB và LAN (Optional)
