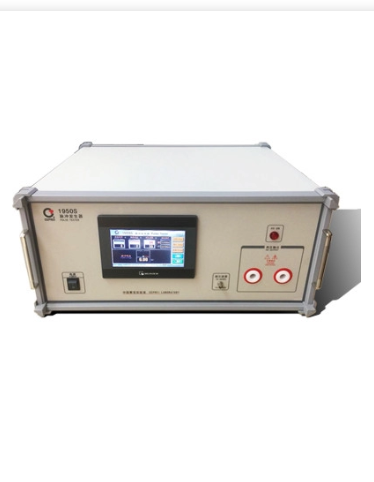

KINGPO 1950S Impulse Test Generator

Test pulse waveform: 10/700uS

The waveform error is ±20%

The output pulse voltage is 0 ~ 4kV, which can be adjusted continuously

The accuracy of voltage digital display is ±5% ±3 words

Test pulse waveform: 1.2/ 50uS

The waveform error is ±20%

The output pulse voltage is 0 ~ 6kV, which can be adjusted continuously

The accuracy of voltage digital display is ±5% ±3 words

Charge and discharge time setting: 1 second ~ 999 seconds

Its accuracy is ±1%

Charge and discharge times set: 0 ~ 999 times

Its accuracy is ±1.

Output voltage polarity: positive and negative alternating switching

The partial voltage ratio of the monitoring output is 1 ≤ 1000

Overcurrent protection and overvoltage protection can be continuously set protection values (in-machine adjustment settings)

Display and operation mode: 7 inch color touch screen (TK6070iH) display and menu interface operation

High voltage transformer power: 400VA

Instrument size: approximately 640 mm (length)×460 mm (depth)×320 mm (height)

Working power:220 V ±10%,50 Hz ±2 Hz
