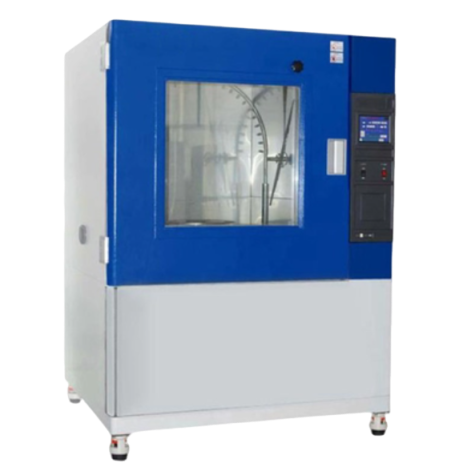

External dimension(mm): 800×1100×1550mm
Internal dimension(mm): 800×800×800mm
Test-bed speed(rpm): 1~5 adjustable; rotary table 500MM; Height: 200mm adjustable
Spray ring radius(mm): 400
Spray pipe swing angle range: 120°,320°(approximate) (1)Nozzle angle: 120°(IPX3), 180°(IPX4)(2)swing angle: 120°(IPX3),320°(IPX4)
Blowhole diameter(mm): φ0.4
Blowhole diameter spacing(mm): 50
Flow of each blowhole::0.07 L/min +5%
Spay water pressure (Kpa): 80-150
Swing of swinging pipe: max ±180°(approximate)
Swing speed: Each swing (2X1200) during IPX3 test:4 seconds per time. Each swing(2X1750)during IPX4 test:12 seconds per time
Test time: 1-999,999min (user defined)
Water pressure in shower: 80~150Kpa (adjustable)
Distance between test sample and device is 200mm.
Appropriate circular turntable (used for fixing sample) with adjustable rotational speed.
Waterproof power plug with 12V/24V
Driving mode: Panasonic 400W servo motor (low noise, accurate speed and angle)
Control system: Siemens touchscreen control system, PLC
Power supply:220V 60Hz
