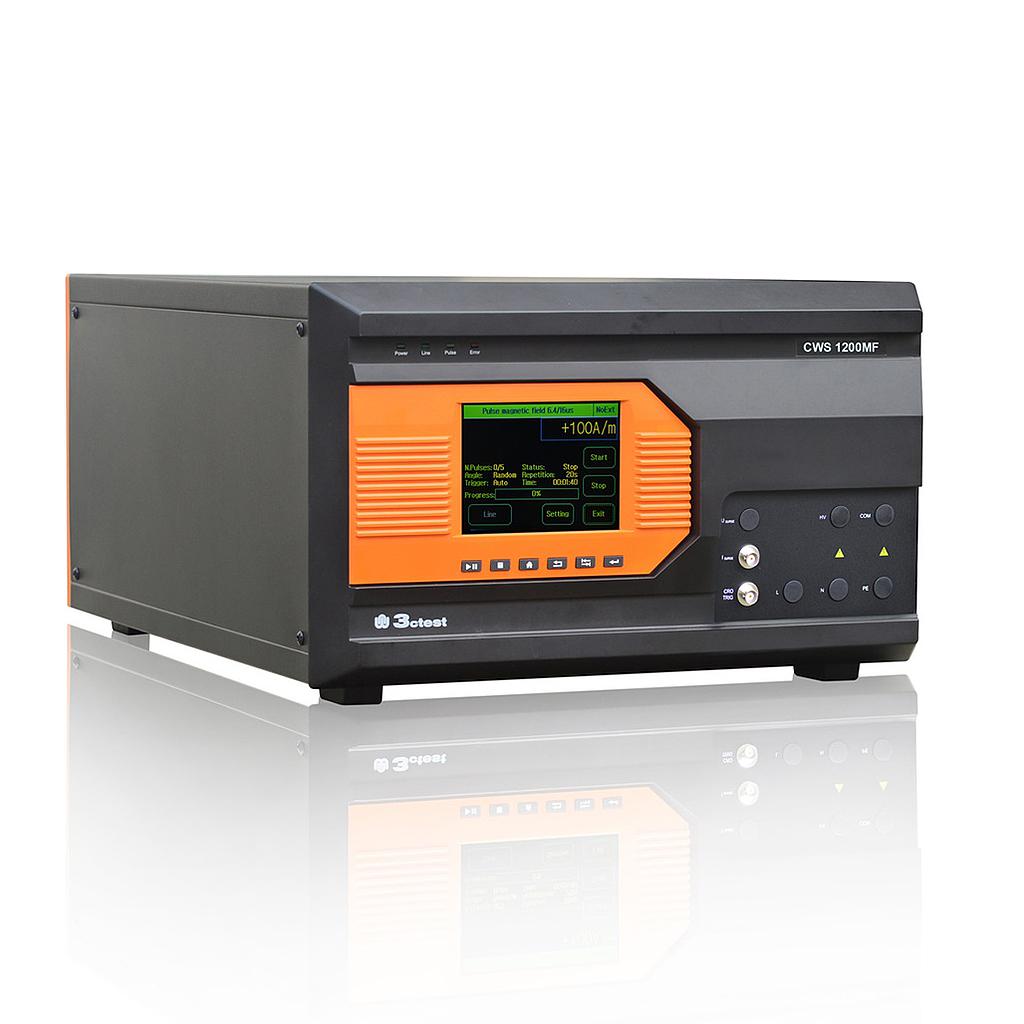

3ctest CWS 1200MF Surge pulsed magnetic field simulator (100 A/m～1200 A/m)

- General parameters:

Display screen: 5.7 inch TFT Touch Screen

Range of working power supply: AC 110 V/220 V，±10%，50/60 Hz

Fuse: 6 A

Max. Power dissipation: 200 W

Communication mode: Ethernet, RJ45

Auxiliary interface: D-sub 25 p

External trigger input: BNC, 5 V TTL

CRO trigger output: BNC, 5 V TTL

Running control input: BNC, 5 V TTL

Output of Warning lamp: 0 - 220 V AC 10 A / 0 - 48 V     DC 3 A

The power depends on the types of external signal lamp

Safety circuit: Stop working when the safety circuit is not closed

Failure detection: LCD will display the failure on the front panel and interrupt instrument working

Instrument working status indicator: LED on the front panel indicates and LCD displays

Instrument grounding connection: Use flat ground wire

Detection output mode: Standard 1m coaxial cable

Size of crate （W*H*D): 19 inch/6U

Weight: Approx. 30 Kg

Temperature range: 15–35 ℃

Humidity range: 45%-75%

Air pressure range: 86 kPa～106 kPa

- Pulse magnetic field test:

Range of output magnetic field: 100 A/m～1200 A/m（single-turn 1000 mm*1000 m）

Waveform: Front time:8 μs±20%; Peak to half value:20 μs±20%

Polarity: +/-/alternate

Trigger mode: Auto, manual, external signal trigger

Pulse period: 5-99 s（the shortest time depends on the test current）

Number of test times: 1-999

Size of coil: 1000*1000

Shape of coil: Rectangle

Turns of coil: Single turn
