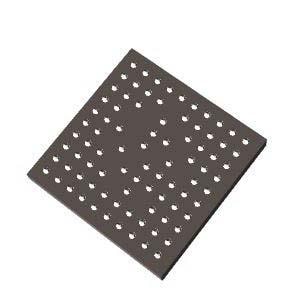

Dialog Semiconductor DA14691-00000HQ2 Bluetooth Multi-core wireless MCU for Bluetooth 5.2 and proprietary 2G4 protocols
생산업체: Dialog Semiconductor Model: DA14691-00000HQ2 - 연락처
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Core: ARM Cortex M33
Width: 6 mm
Height: 0.9 mm
Length: 6 mm
Technology: Si
Sensitivity: - 97 dBm
Output Power: 6 dBm
Data RAM Size: 384 kB
Data RAM Type: SRAM
ADC Resolution: 10 bit, 14 bit
Data Bus Width: 32 bit
Interface Type: I2C, I2S, SPI, UART, USB
Mounting Style: SMD/SMT
Number of I/Os: 44 I/O
Number of Timers: 4 Timer
Maximum Data Rate: 1 Mbps
Moisture Sensitive: Yes
Operating Frequency: 2.4 GHz
Program Memory Size: 4 kB, 128 kB
Program Memory Type: OTP
Supply Voltage - Max: 4.75 V
Supply Voltage - Min: 2.4 V
Number of ADC Channels: 16 Channel
Maximum Clock Frequency: 96 MHz
Supply Current Receiving: 1.8 mA
Supply Current Transmitting: 3 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
