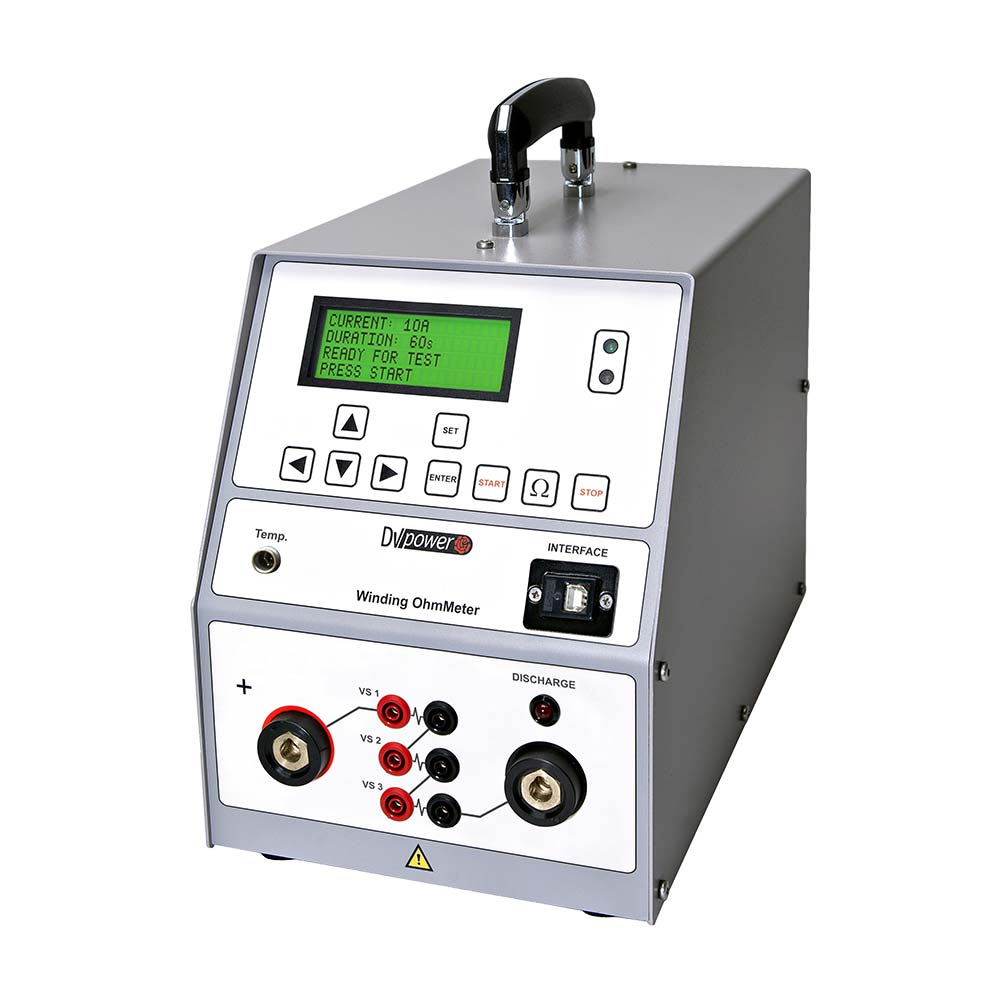

DV Power RMO100M Motor & Generator Winding Ohmmeters
생산업체: DV Power Model: RMO100M - 연락처
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Test currents: 5 mA – 100 A DC
Measurement range: 0.1 μΩ - 1 kΩ
Typical accuracy: ± (0.1% rdg + 0.1% F.S.)
Range / Resolution
• 0.1 μΩ – 999.9 μΩ/ 0.1 μΩ
• 1.000 mΩ – 9.999 mΩ/ 1 μΩ
• 10.00 mΩ – 99.99 mΩ/ 10 μΩ
• 100.0 mΩ – 999.9 mΩ/ 0.1 mΩ
• 1.000 Ω – 9.999 Ω/ 1 mΩ
• 10.00 Ω - 99.99 Ω/ 10 mΩ
• 100.0 Ω – 999.9 Ω/ 0.1 Ω
Dimensions and Weight
• Dimensions (W x H x D): 198 mm x 250 mm x 350 m/ 7.8 in x 9.8 in x 13.8 in
• Weight: 8.0 kg / 17.6 lbs
Environmental Conditions
• Operating temperature: -20 ºC to +55 ºC / -4 °F to +131 ºF
• Storage & transportation temperature: -40 ºC to +70 ºC / -40 °F to +158 ºF
• Humidity 0% - 95% relative humidity, non-condensing
Mains Power Supply
• Connection according to IEC/EN60320-1; UL498, CSA 22.2
• Mains supply: 90 V – 264 V AC
• Frequency: 50 / 60 Hz
• Input power: 1200 VA
