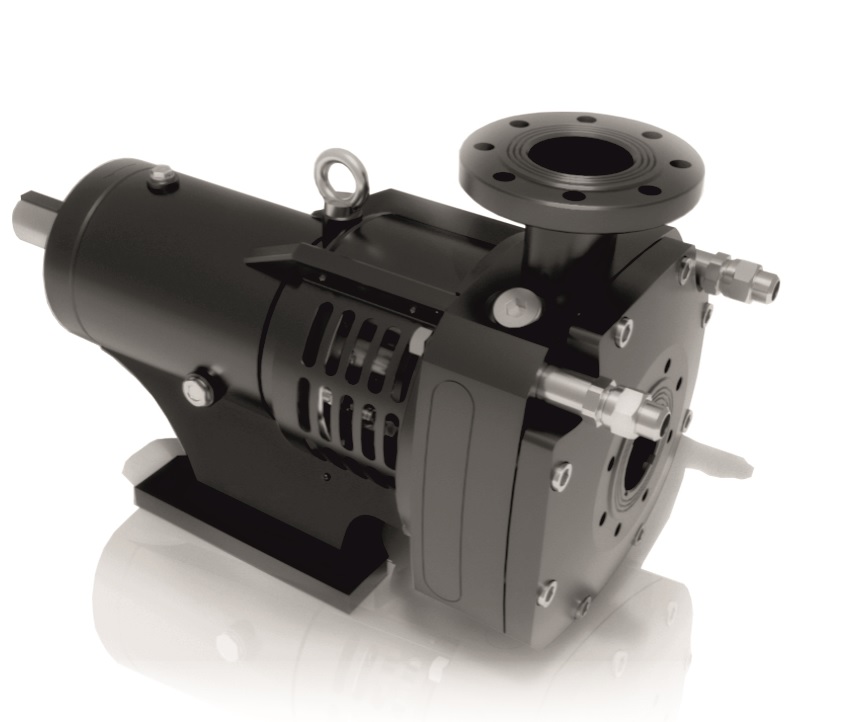

GlobeCore CLM-10/20 Colloid mill (20 m3/h; 75 kW)
생산업체: GlobeCore Model: CLM-10/20 - 연락처
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Unit capacity, m3/h (gpm): 10…20 (44… 88)
Operating temperature, °C (°F), not more than: 200 (392)
Maximum pressure, bar (psi), not more than: 20 (290)
Product operating volume, L: flow
Shaft seal type: packing (mechanical)
Rotor/stator tooling type: chamber
Replaceable knife kit: optional
Knife axial gap (preset), mm : 0.2…2 (8·10-3… 8·10-2)
Knife radial gap mm (in): 0.3 (10-2)
Knife tip speed, m/s (mph), not more than: 52 (116)
Mill shaft and bearing rotation speed, rpm: 4,500
Electric motor shaft rotation speed, rpm: 3,000
Drive power, kW: 75 (90)
Power voltage, V: custom
Dimensions, mm (in), not more than:
· length: 1,200 (47)
· width: 1,000 (39)
· height: 850 (33)
Weight, kg (lbs), (max): 900 (1,985)
