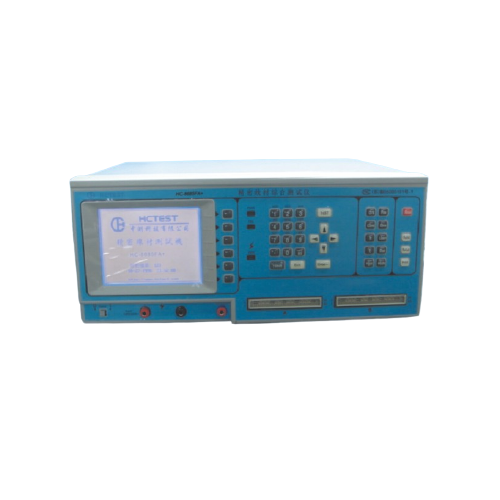

HCTEST HC-8681N++ 케이블 테스터 (2 wire; ≈700VDC; 0.01mA~5mA)
생산업체: HCTEST Model: HC-8681N++ 보증: 12 Month - 연락처
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Test item range:
+ Open/ Short (os): 2KΩ~50KΩ
+ Conductance (Cond.): 0.1Ω~50Ω
+ Resistance (R): 0.1Ω~1MΩ
+ Capacitance (C): 10pF~1uF
+ Zener (D): 0~7V
+ Dc Insulation (Is.): 1MΩ~500MΩ
+ Ac Hipot (IL): 0.01mA~5mA
+ Intermittent Conductance (Int.cond.): 0.1Ω~50Ω
+ Intermittent Open/Short (Int.os): 2KΩ~50KΩ
Test information:
+ Output Rating: 5 VDC, 20mA max
+ DC Hipot/ insulation 200~700V
Test mode: NORMAL/ S.SIDE/ S.STEP
Communication interface: Handler/ Rs232/ Print/ USB
Measurement& scanning Mode:
+ Series/ Parallel
+ Auto/Short Switchable
Decision mode: Pass /fail (LED); Speaker
Lock Mode: Standard lock/ Password lock
Starting mode: Auto/ Manual/ Continuous/ External
Memory: 1024KB
Comprehensive information:
+ Power Input: 220V±10% 60Hz (Option 110V 50Hz)
+ Power consumption: 100W
+ Temp.: -10°C~35°C
+ Humidity : RH≤75%
+ Size: 425*190*350 (64p or 128P)/ 425*240*350 (256P)
+ Weight: 13kg(64p)/ 14kg(128p)/ 18kg(256p)
+ Display: 320*240 LED
