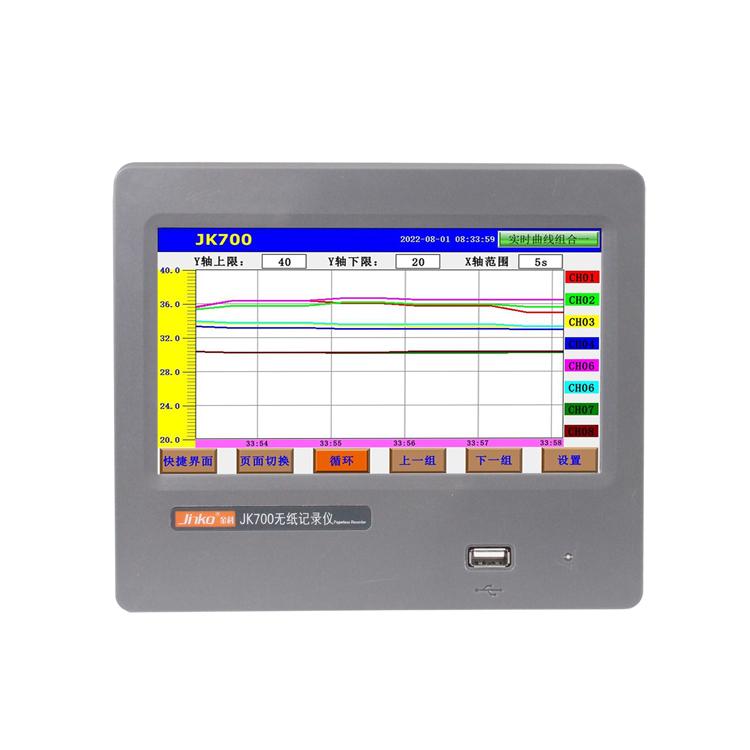

JINKO JK700H 산업용 온도 및 압력 기록 장치 (100ms,200ms,500ms,1s,2s,5s (all channels))
생산업체: JINKO Model: JK700H - 연락처
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Monitor: 7-inch TFT LCD (800*480 pixels)
Touch screen: Industrial Resistive Touch Screen
Rated power supply: AC: 100-240V (50/60Hz), DC: 24V (20 watts)
Rated power output: DC: 24V + 5V (5 watts total) (AC power supply needed)
Power consumption: Maximum 30VA
Maximum input channels: 12 x 4
Maximum output channels: 18 x 1
Isolation voltage: 300VDC channel to channel
Sampling Period: 100ms, 200ms, 500ms, 1s, 2s, 5s (all channels)
Recording Interval: 1, 2, 4, 6, 15, 30, 60, 120, 240 seconds
Internal storage: 4GB
External storage: USB flash disk (maximum 32GB) (file system: FAT32)
Instrument size: 186 x 155 x 165 (width * height * depth) mm
Embedded size: 138 x 138 x 140 (width * height * depth) mm
Instrument weight: About 1.8 KGS
