LANGER EMV-Technik SX-R 20-1 set 니어필드 프로브 (1 GHz - 20 GHz)
생산업체: LANGER EMV-Technik Model: SX-R 20-1 set - 연락처
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Technical parameters
Frequency range: 1 GHz -20 GHz
Connector: SMB, male, jack
Probe head dimensions: ≈ 6x6 mm

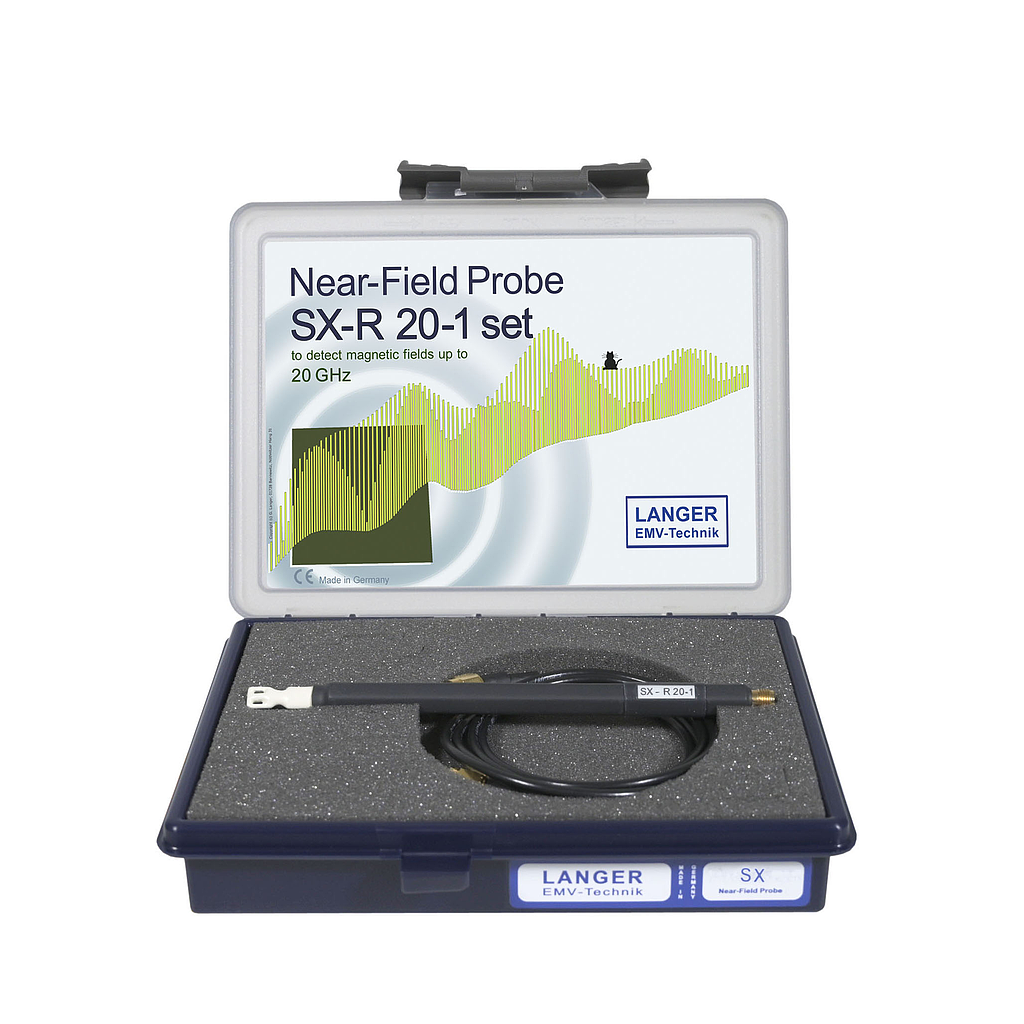

Scope of delivery
1x SX-R 20-1, H-Field Probe 1 GHz up to 20 GHz
1x SMA-SMA 1 m es, SMA-SMA Shielded Measurement Cable
1x Case 4, System Case Near-Field Probes
Short description
The SX-R 20-1 set consists of a passive near-field probe for the measurement of high-frequency magnetic fields up to 20 GHz during development. The probe head of the SX-R 20-1 allows measurements close to the electronic assembly, e.g. on individual IC pins, conductors, components and their connections to locate sources of interference. The field orientation and field distribution on the electronic assembly can be determined by guiding the near-field probe accordingly. The near-field probe is small and handy. It has a sheath current attenuation and is electrically shielded.
The near-field probe is connected to a spectrum analyzer or an oscilloscope with 50 Ω input.
Datasheet
