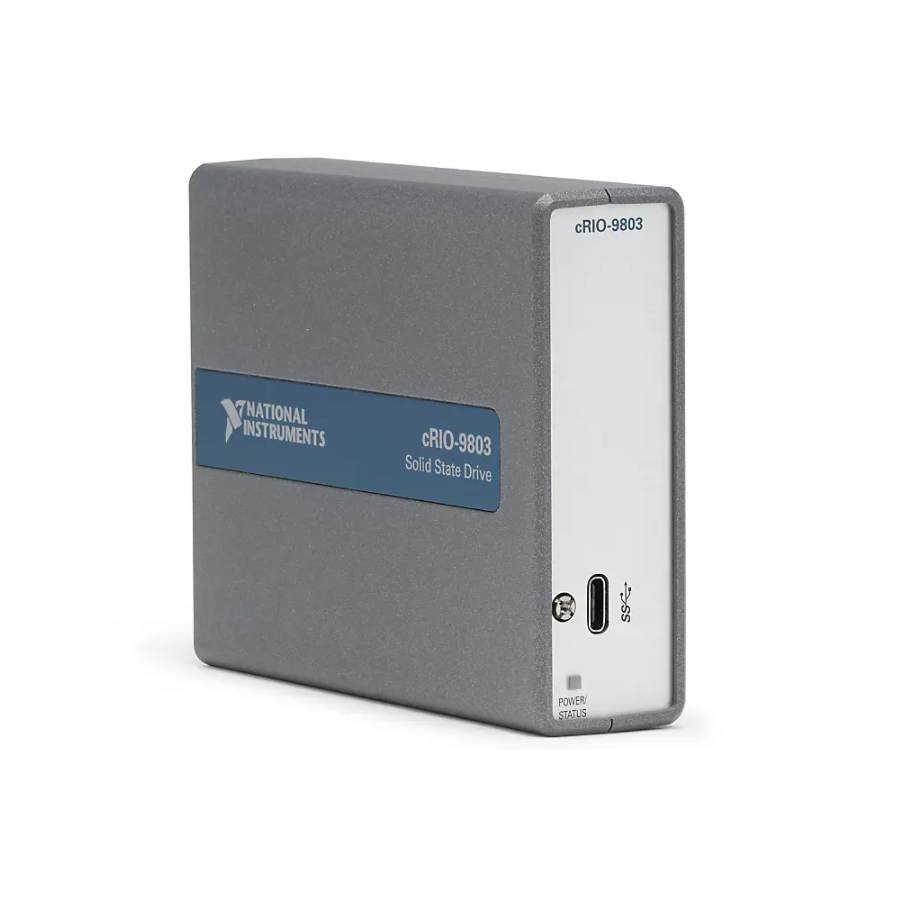

NI cRIO-9803 Expansion Module for CompactRIO (480GB MLC SSD, 5 Gb/s)
생산업체: NI Model: cRIO-9803 P/N: 786677-01 - 연락처
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Software
Supported operating system NI Linux Real-Time (64-bit), Windows
USB Ports
Type: USB type-C, upward-facing (device) port
USB interface: USB 3.1 Gen1, SuperSpeed
Maximum data rate: 5 Gb/s
Maximum current from USB downward facing (host) port: 900 mA
Memory
Nonvolatile (SSD): Varies
Form factor: mSATA, full size
Maximum supported drive power: 2.9 W (875 mA @ 3.3 V)
Drive interface: SATA II
Read/write performance (sequential): 150 MB/s
Power Requirements
Maximum power consumption: 4.5 W (900 mA @ 5 V)
Power source: USB bus-powered
Physical Characteristics
Weight: 370 g (13 oz)
Dimensions: 30.0 mm × 88.1 mm × 106.9 mm (1.18 in. × 3.47 in. × 4.21 in.)
Expands the processor I/O from an NI controller to meet additional application requirements.
The Expansion Module for CompactRIO connects to the processor I/O, such as USB and Ethernet, of a controller to expand its functionality. This module works with CompactRIO Controllers, Industrial Controllers, CompactRIO Single-Board Controllers, and PXI Controllers to expand the capabilities of the system, such as adding additional storage for saving more data and increasing the number of USB or time-sensitive networking (TSN) Ethernet ports of the system. Additionally, the Expansion Module for CompactRIO features the same rugged shock and vibration ratings as other CompactRIO modules, and you can can mechanically connect it to a controller for integration using mounting accessories.
Datasheet
