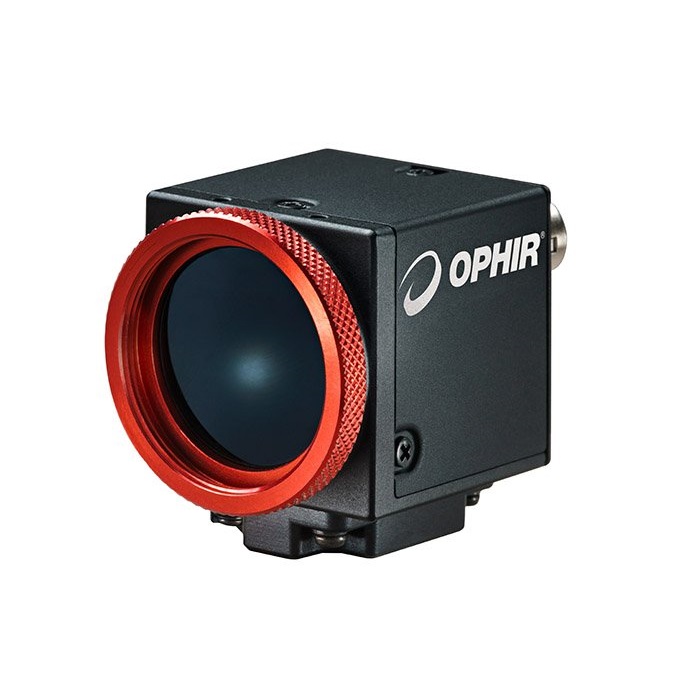

Ophir LT665-1550 빔 프로파일링 카메라 (1440-1605nm)
생산업체: Ophir Model: LT665-1550 P/N: SP90384 - 연락처
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Wavelengths: 1440-1605nm
Beam Sizes: 600μm - 9.9mm
Pixel spacing: 4.54μm x 4.54μm
Interface: USB 3.0
Sensor Type: Phosphor-Coated Silicon CCD
Compatible Light Sources: CW, Pulsed
Active Area: 12.5mm x 10mm
Number of effective pixels: 2752 x 2192
Dynamic range: ~30 dB
Gain control: 0.8 dB to 56 dB
Frame Rate at Full Resolution: 27 fps
Ambient operating temperature: 0 - 50° C
Dimensions: 43mm x 43mm x 65mm
Compliance: CE, UKCA, China RoHS
BeamGage Standard: BGS-USB3-LT665-1550
