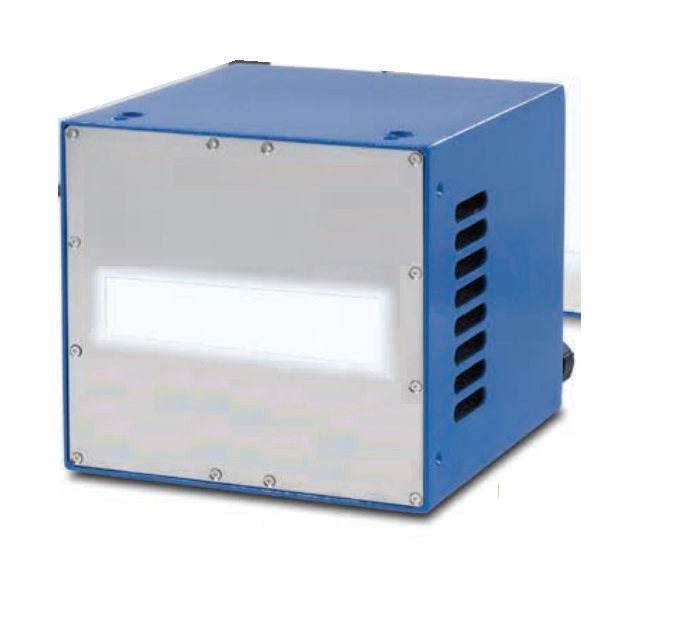

Opsytec Dr.Grobel UV-LED L-XS-HO 450 nm UVLED 광원 (450nm, 8000mW/cm²)
생산업체: Opsytec Dr.Grobel Model: UV-LED L-XS-HO 450 nm P/N: 860615-2-XH-450 nm 출처: Germany - 연락처
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
>> Technical data UV-LED SerieS L: XS-HO

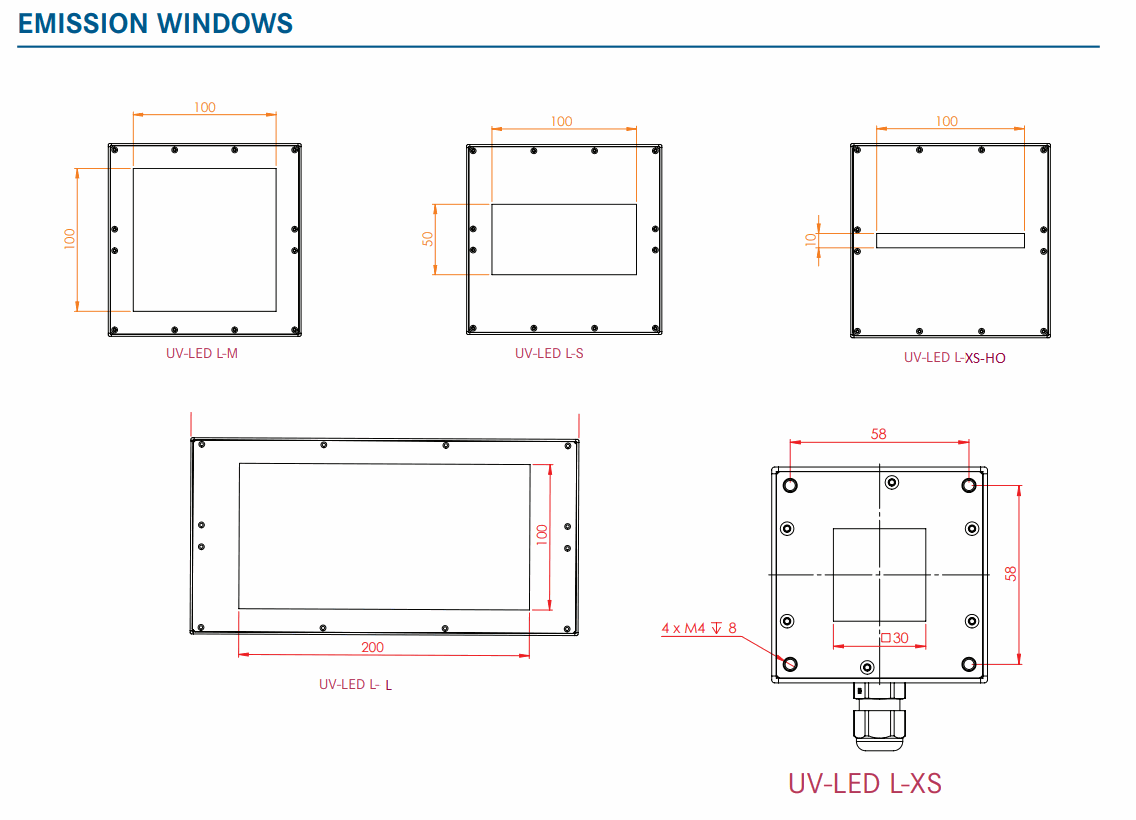

Emitting area: 100 x 10 mm
Dimensions: 135 x 135 x 145 mm
Power (el.): 200 W
>> Irradiance
450 nm: 8000 mW/cm²
>> Common technical data UV-LED SERIES L
Wavelength: 365, 385, 395, 405, 450 nm
Emission, peak tolerance: +/- 5 nm
Emission, FWHM: 10 - 20 nm
Uniformity: 90%, centric, 10 mm distance drop down to edge (s. fig.)
Cooling: air-cooling
Operating temperature: 5 to 40 °C
Connections: Trigger, Interlock in, optional dimming in (0-10V), failure out
Programming, optional: RS485, RS232 or USB
Internal security circuit: Over-temperature, LED defect
Mains: 100 - 240 V, 50/60 Hz
Scope of delivery
UV-LED Modul, cable 3 m, manual
