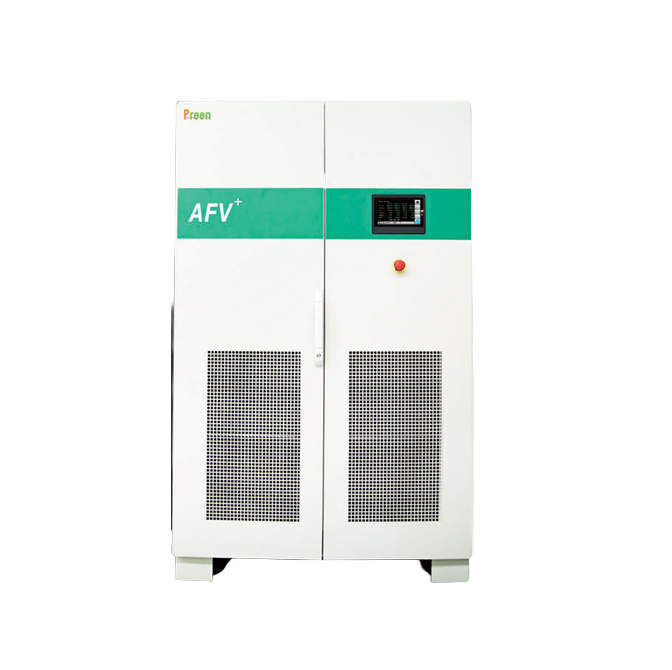

Preen AFV-PLUS-331000 고전력 프로그래밍 가능 AC 전원 (output 3 phase, 1000kVA/300V/45-65Hz)
생산업체: Preen Model: AFV-PLUS-331000 - 연락처
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
INPUT
Phase: 3Ø / 3Wire + G
Voltage: 380Vac ±15% (option: 400Vac, 240Vac or 480Vac)
Frequency: 47 - 63Hz
Max. Current: 2097.1A
Power Factor: ≥0.9(Max. Power)
OUTPUT
Power: ( VA ): 1000kVA
Phase: 3Ø / 4 Wire + G
Voltage Ranges
Low (V): 0V-155.0V(L-N)
High (V): 0V-310.0V(L-N)
Frequency Range: A : 45-500Hz;B : 45-120Hz
Max. Current (RMS)
Low (A): 2777.8A
High (A): 1388.9A
MEASUREMENT
Voltage Range: 0V-310.0V
Frequency Range: 45.0-500.0Hz
Current Range (RMS): 0 - 2777.8A
Power Range: 0 - 1000kW
GENERAL
Efficiency: ≥85% at Max. Power
HMI: Touch Screen, 7" Color TFT LCD
Opertional Temperature: 0°C~45°C
Humidity: 0~90% ( Non condensing )
Altitude: < 1,500m
Dimensions (H x W x D): (for 380V input voltage, Other voltage - Special order Options)
2050 x 6003 x 1520mm
80.7 x 236.3 x 59.8inch
Weight: 11080kg / 5024.9lbs (for 380V input voltage, Other voltage - Special order Options)
