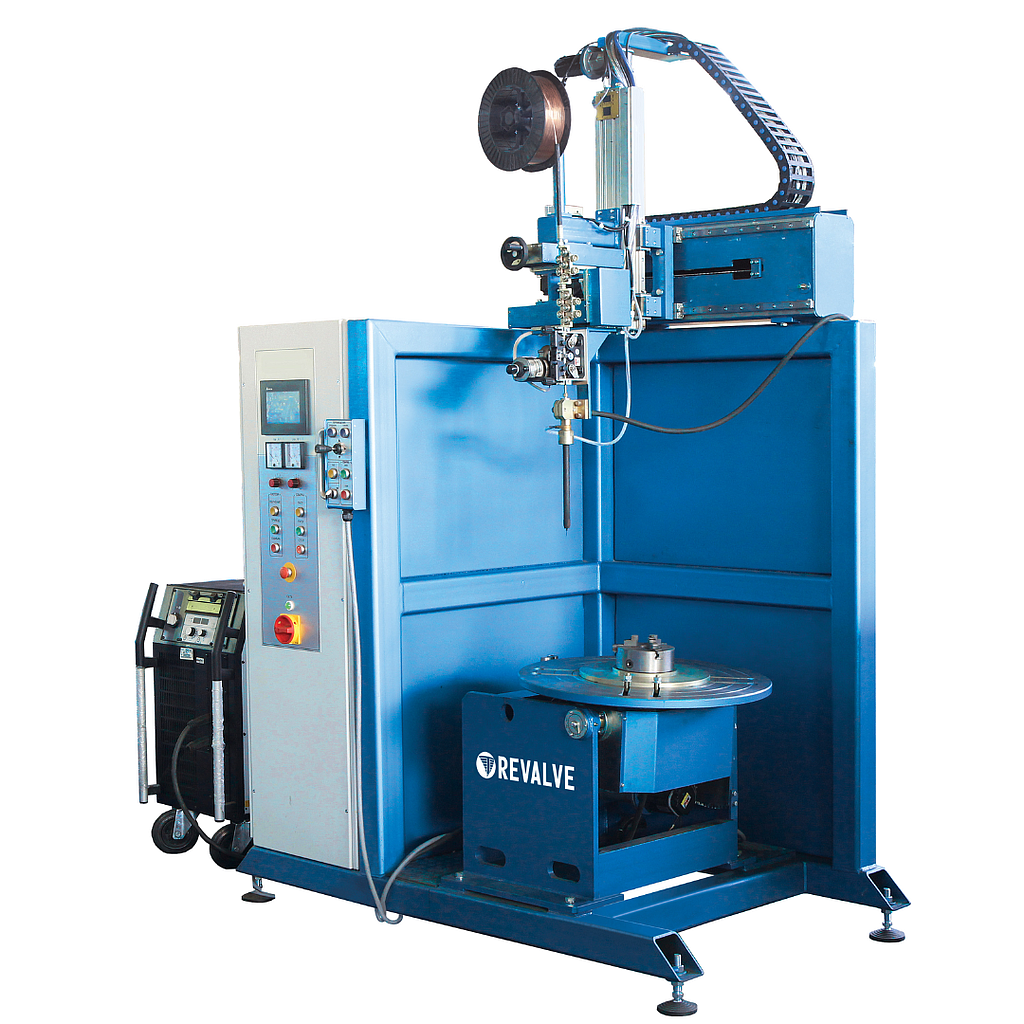

Revalve UNG-750-400-400-KNV-А Machine for hardfacing/cladding and rebuilding of cylindrical and flat valve surfaces
생산업체: Revalve Model: UNG-750-400-400-KNV-А - 연락처
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Horizontal travel of welding head: 550(22) mm
Travel of a welding head along “zenith”: 100(4)mm
Vertical travel of a welding head: 400(16)mm
Rotator load capacity: 400kg
Rotator faceplate rotation speed: 0,05÷7 rpm
Tilt angle of a rotator faceplate: 0÷50 deg
Electrode-wire diameter: 1,6; 2,8 (0,069; 0,11)
Rated welding current, at 100% duty cycle: 420A
Welding current adjustment range: 5÷450A
Range of welding voltage: 15÷35 V
Arc protection method: gas
Maximum power consumption: 35 kW
Power supply: 400/50 V/Hz
Overall dimensions, (LxWxH):
- machine: 1800х1050х2665 (71x41x105) mm
- power source: 1100х455х950 (44x18x37) mm
Weight (machine/power source): 970/125kg
