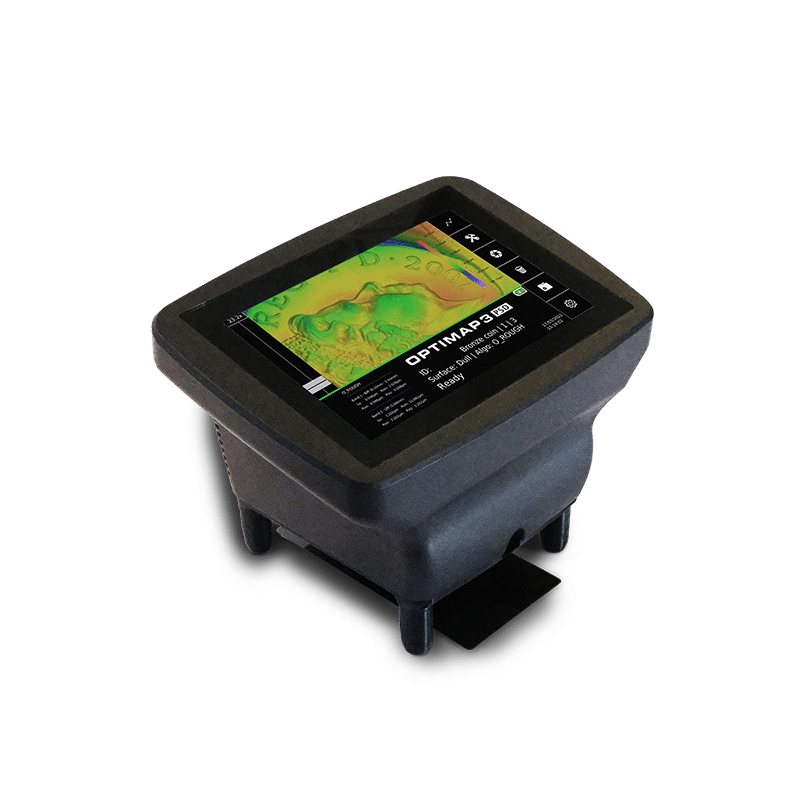

Rhopoint Instruments Optimap3 PSD Surface & Appearance Analysis

Measurement

Compatibility: Optimap1, 2 & 3, TAMS, RoboTAMS

Field of View: 65 x 54mm

Measurement Focus: Dual Focus - Target Images and Surface

Spatial Resolution: 37 um/pixel

Measurement Techniques:

Phase Measurement Deflectometery

Optical Transfer Function

Line Deformation Analysis

Surface Imaging

Measurement Time: 10 Seconds

Topographical Output:

Curvature Map

Altitude Map

Filter Options

Wavescan Band Filtering

User Definable ISO GPS

High Pass, Low Pass, Band Pass

Profile Analysis: Yes

Measurement Parameters: K, Ka, Kb, Kc, Kd, Ke, KLW, KSW, T, Ta, Tb, Tc, Td, Te, TLW, TSW, Q, H, S, W, D, C, RaX, RaY, Sa, Rsm

Hardware

Processor: Intel i7 Gen 5

Memory: 256 GB

Battery: Rechargeable Lithium ion 12000mAh

Typical Use/Charge: 3 - 4 hours / charge

Camera: 3.2 MP- dual Focus

Output Data: Maps/CSV/Results database

Data Transfer/Speed: SD Card - 12.5 MBs

Display: 10.1 Capacitive Touch 1280 x 800

Dimensions: 233mm (H) x 314mm (H) x 235mm (D)

Carry options: 6 Point harness anchors

Fixture: Removable Measurement Base

Optional Extra: Wet paint measurement Base Customisable jigs and fixtures

Weight: 3.5Kg

Interface

HMI Interface: Optimap 3 GUI- 10 point touch

SPC Integration: Yes

Connectivity: LAN USB
