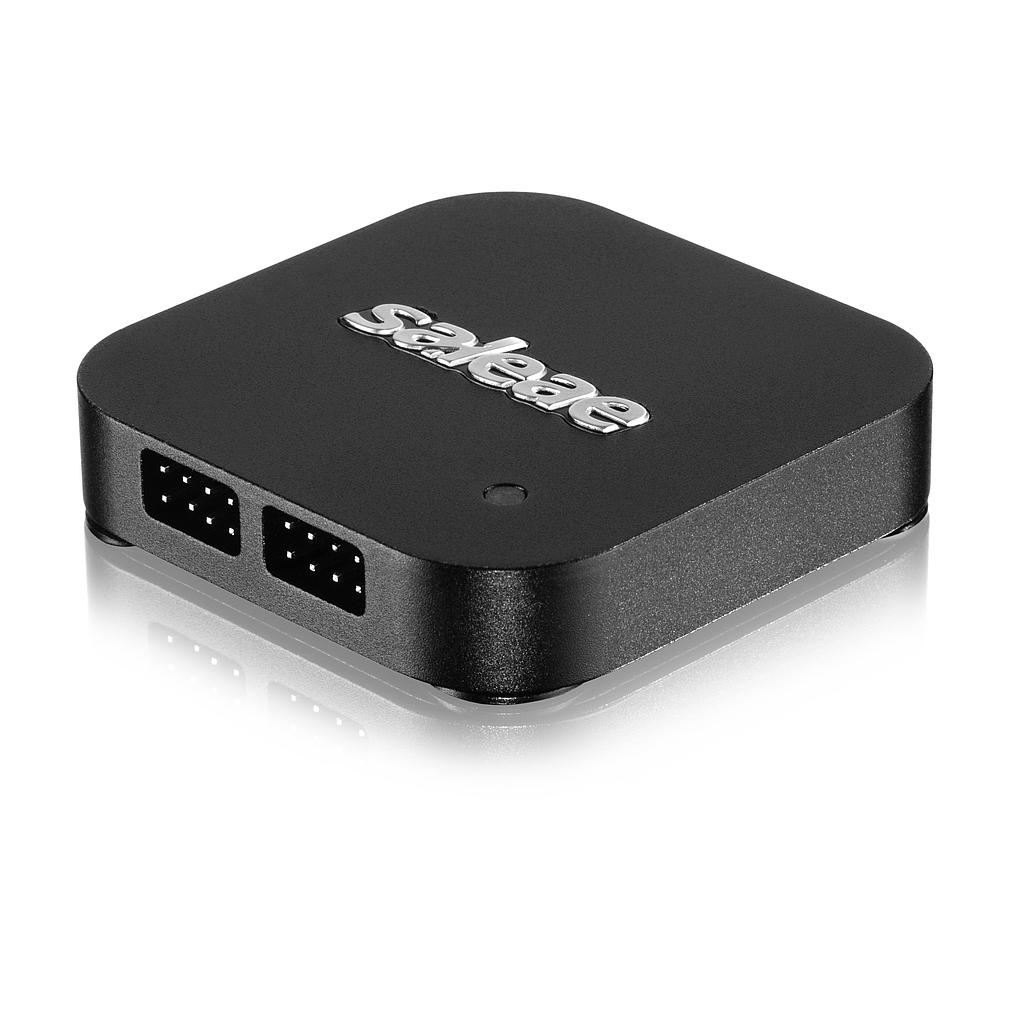

Saleae Logic Pro 8 로직 분석기
생산업체: Saleae Model: Logic Pro 8 - 연락처
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Inputs
Multi-Use (A/D/Both): 8
Input Resistance: 2 MΩ
Input Capacitance: 10 pF
Input Protection: ± 25V
Digital
Sample Rate (max): 500 MS/s
Fastest Digital Signal: 100 MHz
Sample Depth (typical): 10+ Billion
Supported Logic Levels: 1.2V - 5.5V
Works with RS-232, 422/3, 485: Yes, directly
Threshold Voltages: Selectable .6V / .9V / 1.65V
Analog
Sample Rate (max): 50 MS/s
Bandwidth (-3dB): 5 MHz
Number of bits: 12bits
Input Voltage Range: -10 V to 10 V
Attenuation @ Nyquist: -50 dB or better
Channel-Channel Crosstalk: -50 dB or better
Physical
Size: 2.1" x 2.1" x .46" (53 x 53 x 12mm)
Weight: 2.1oz (60g)
USB Type: USB 3.0
Details
