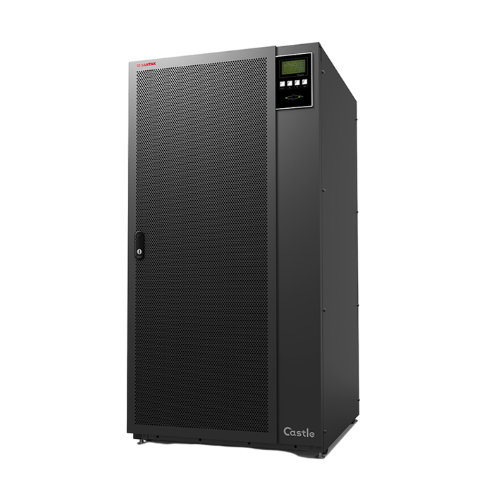

Santak 3C3 Pro-200KS 온라인 UPS (180kW)

- Power rating (kVA/kW): 200/180

- Topology: Double conversion, IGBT based

- UPS rectifier/input

+ Topology: PWM, IGBT based

+ Rated voltage: 380Vac/220Vac

+ Voltage range: -50%-20%, depends on load percentage

+ Input power factor: 0.99

+ THD (i): <5%

+ Rated frequency: 50/60Hz auto sensing

+ Frequency range: 42-72 Hz

- UPS Output

+ Power factor: 0.9

+ Efficiency: Up to 94% in online mode; >98% in ECO mode

- Output voltage: 380Vac/220Vac +/-1%

+ Overload capacity: <105% continuous run; 105%-125% 10min

+ THDV: <2% for Linear load

+ Output frequency: 50/60 Hz

+ Unbalanced load: 1

+ Crest factor: 3:1

- Bypass

+ Internal static switch: NA

+ Bypass voltage: 380 Vac (+/-15%)

+ Maintainence bypass: Standard

- Battery

+ Battery type: VRLA

+ Backup time: Varies from battery capacity and load situation

+ Battery PCS: 36-40 PCS adjustable, 40 PCS default

+ Recharge time: 8 hour to 90%

- Communication

+ Interface: RS232, Mini slot

+ Accessories (optional): SNMP/WEB, Modbus/Ethernet, AS400, NMC

- Opertion environment

+ Running temperature: 0~40ºC

+ Storage: -25~55°C

+ Humidity: 5%~95%

+ Elevation: No derating < 1000m
