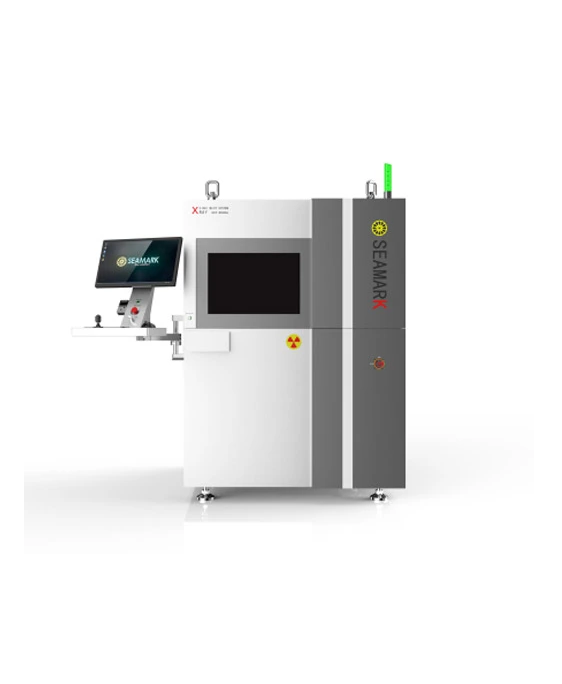

Seamark ZM XCT8500 범용 산업용 X선 검사 시스템
생산업체: Seamark ZM Model: XCT8500 - 연락처
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
X-RAY Tube Parameters
Tube Type: Open micro-focus transmission X-ray source
Tube Voltage Range: 20 ~160KV
Tube Current Range: 0.01mA ~ 1.0mA
Maximum Tube Power: 64W
Maximum Target Power: 15W
Minimum Object Distance (FOD): < 300 μm
Micro Focus Size: < 1 μm
Minimum Defect inspection Capability: <500 nm
Flat Panel Detector Parameters
Flat Panel Type: Amorphous silicon flat panel detector (optional)
Pixel Matrix: 1536×1536
Field of View: 154mm×154mm
Resolution: 5.0Lp/mm
Image Frame Rate(1×1): 30fps
AD Conversion Digits: 16bits
3D/CT Parameters（Optional Function）
CT Scan Cycle: 20s
CT Reconstruction Time: 30s
Equipment Performance Parameters
Maximum Sample Size: 645mm×635mm
Maximum inspection Area: 500mm×500mm
Image Geometric Magnification: 2500X
Input Power Supply: 220V 10A 50 - 60HZ
Control System: DELL OptiPlex 7000MT v12.0 i9 graphics workstation
Dimensions: L1500mm×W1650mm×H2250mm
Net Weight: About 2950KG
